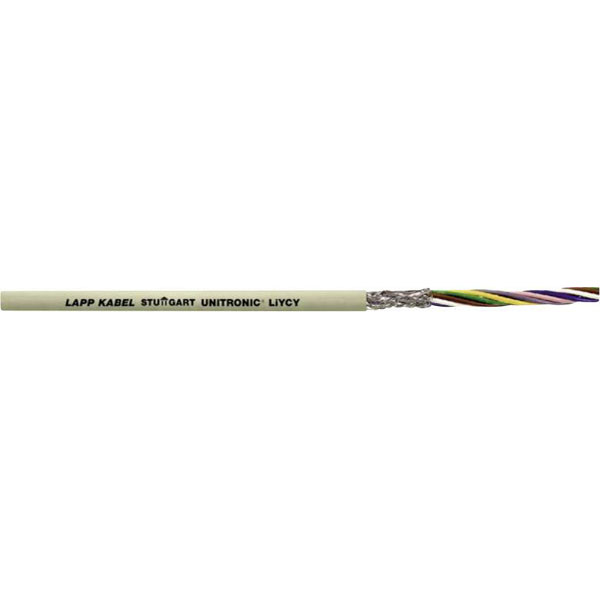

These shielded data cables are used as electronic control and signal lines for computer systems and monitoring devices, office machines, scales etc. The insulation is made of special PVC with a hard outer sheath which protects against wear while remaining flexible and allowing small cable diameters. The additional shielding ensures secure data transmission and protects against interference.
| Type |
Low Interference Cable |
| Bend radius |
For flexible use: 15 x external dia.; when laid fixed: 6 x external dia. |
| Bend radius (no. of ODs for fixed installation) |
6 |
| Bend radius (no. of ODs for flexible installation) |
15 |
| Certification marks |
According to VDE 0812 |
| Core layout |
Braid, fine 0.34 mm² 7-strand |
| Cross section (each core) |
0.50mm² |
| Factory colour |
Grey |
| Halogen-free |
No |
| Insulation material |
PVC |
| Manufacturer part # |
0034605/1 |
| Max. length sold by the metre |
300m |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+70°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
-5°C |
| Misc Attribute |
UNITRONIC® LiYCY |
| No. of leads |
5 |
| Nominal voltage (details) |
250 V (not for heavy current applications) |
| Outside Ø |
7mm |
| Packaged |
No |
| Shielded |
Yes |
| Sold per metre |
Yes |
| Temperature Range |
When laid fixed : -30 - +80°C |
| Wire ID code |
DIN 47100 |
