LappKabel 0034325/1 cable UNITRONIC® LiYCY 25 x 0.14 mm² Grey

Name: LappKabel 0034325/1 cable UNITRONIC® LiYCY 25 x 0.14 mm² Grey
Brand: LappKabel
Price: 2.69 GBP
Availability: InStock

Standard range

Order Code:

67-5894

Brand: LappKabel MPN: 0034325/1

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£2.69

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

239 in stock, despatched in 4 working days

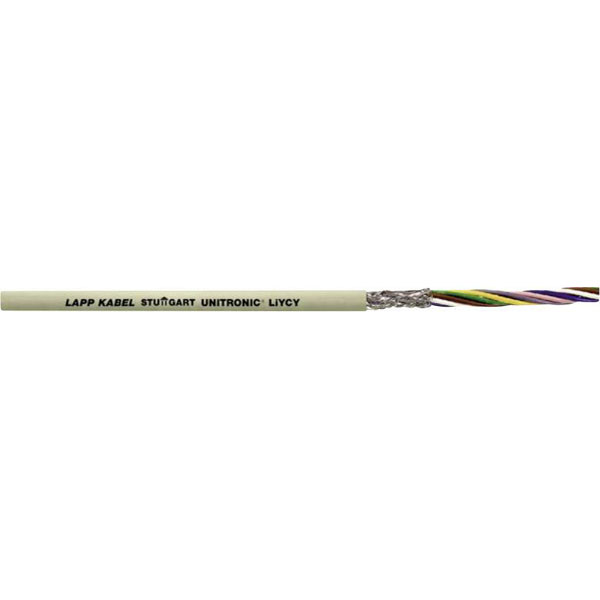

Shielded PVC LiYCY UNITRONIC data cable. Multi-core, Cu shielding braid, flexible.

Type	Low Interference Cable
Bend radius	For flexible use: 15 x external dia.; when laid fixed: 6 x external dia.
Bend radius (no. of ODs for fixed installation)	6
Bend radius (no. of ODs for flexible installation)	15
Certification marks	According to VDE 0812
Core layout	Braid, fine 0.34 mm² 7-strand
Cross section (each core)	0.14mm²
Factory colour	Grey
Halogen-free	No
Insulation material	PVC
Manufacturer part #	0034325/1
Max. length sold by the metre	300m
Max. temperature range (fixed installation)	+80°C
Max. temperature range (flexible installation)	+70°C
Min. temperature range (fixed installation)	-40°C
Min. temperature range (flexible installation)	-5°C
Misc Attribute	UNiTRONiC® LiYCY
No. of leads	25
Nominal voltage (details)	250 V (not for heavy current applications)
Outside Ø	8.90mm
Packaged	No
Peak operating voltage	250V
Shielded	Yes
Sold per metre	Yes
Temperature Range	When laid fixed : -30 - +80°C
Wire ID code	DIN 47100
