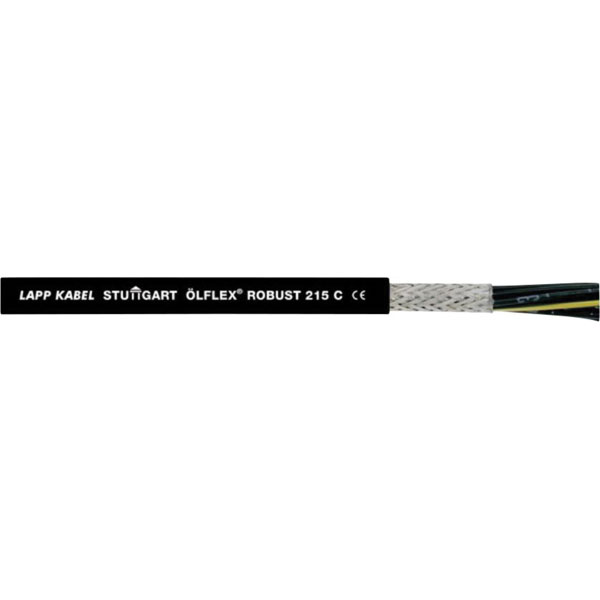

This cable from LappKabel offers outstanding weather, ozone and UV resistance together with a wide temperature range enabling versatile use for both indoor and outdoor applications.
- EMC-conforming
- Bend radius (no. of ODs for fixed installation): 6
- Bend radius (no. of ODs for flexible installation): 20
- Cable features: UV-resistant, Halogen-free, Shielded
- Cable Type: ÖLFLEX® ROBUST 215 C Control wiring
- Colour: Black
- Core layout: Finely stranded according to VDE 0295, Class 5/IEC 60228 Class 5
- Cross section 7 x 0.75mm²
- Halogen free
- Max. temperature range (fixed installation): +80°C
- Max. temperature range (flexible installation): +80°C
- Min. temperature range (fixed installation): -50°C
- Min. temperature range (flexible installation): -40°C
- No. of leads 7
- Nominal voltage: 500V
- Nominal voltage U0: 300V
- Outside diameter: 8.5mm
- Sold per metre: Yes
- Standards: VDE: Wires: VDE 0245/0250/0281, sheath according to VDE 0250/0281
- Manufacturer's part 0022724
This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.
| Cable Diameter |
8.5mm |
| Colour |
Black |
| Conductor Cross-section |
7 x 0.75mm² |
| Insulation material |
TPE |
| No. of Cores |
7 |
| Sold by Metre |
Yes |
