LappKabel 00123533 ÖLFLEX 500 P Workshop Cable 5x1.5mm Orange

This LappKabel ÖLFLEX® 500 P Connecting Cable is oil resistant. It has an inner insulation and outer sheath manufactured from Polyurethane making it highly flexible. The cable has a wide temperature range for applications in harsh climatic environments. ÖLFLEX® 500 P cables are designed for use in dry, damp and wet conditions, including outdoors.

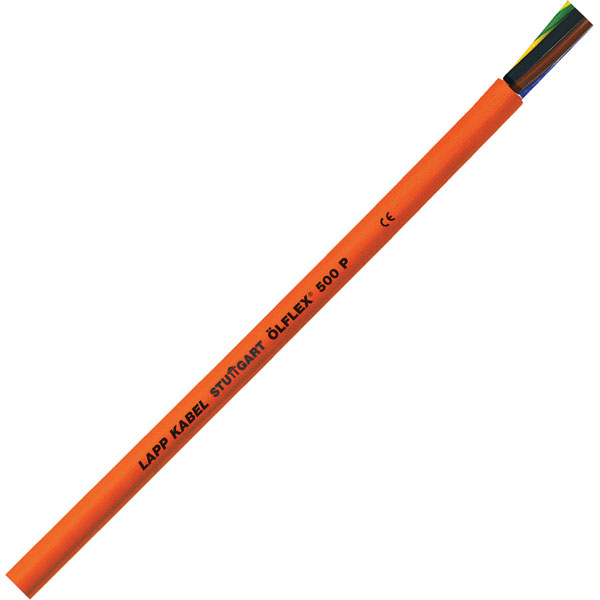

The cable has been manufactured from extra-fine wire strand made of bare copper, with a core insulation of PUR. The cores of the cable are twisted together and covered with an orange PUR outer sheath.

Applications include connection and extension cables, portable handheld electrical devices such as drills, sanders, jig saws or grinders and portable devices for the home and garden.

• Extra flexible/ flexible when cold
• Bending radius: Minimum bend radius for flexible application: 15x external dia.
• Cores colour-coded: Yes
• Halogen-free: Yes
• Material: Inner insulation/outer jacket: Polyurethane
• Nominal voltage: 300/500V: Test voltage 3000V
• Shielded: No
• Standards/test marks: According to VDE 0250
• Wire ID code: to VDE 0293 or VDE 0293-308
• Sold per metre: Yes
• Temperature range: -40°C to +80°C
• Type: ÖLFLEX® 500 P
• Outside diameter 10.8mm
• Supplied in orange
• Supplied in 5x1.5mm²
• Manufacturer's part: LappKabel 00123533

This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.

Conductor Stranding	Super-finely stranded VDE 0295 class 6 / IEC 60228
Insulation material	Polyurethane
Cable Diameter	10.8mm
Colour	Orange
Conductor Cross-section	5 x 1.5mm²
Length	Sold per metre
Sold by Metre	Yes
Standards/Test Marks	VDE 0250
