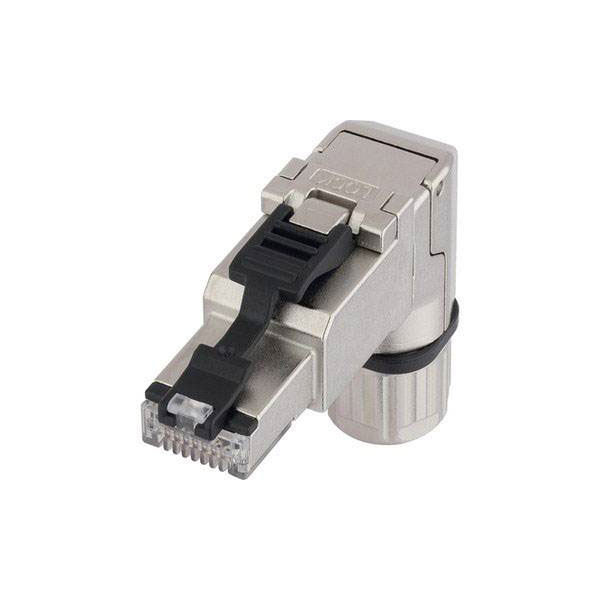

LAPP 21700640 plug, RJ45, right angle, IP20, 10 Gbit/s, 8 pins

LAPP
Order Code:

67-6363

Brand: LAPP MPN: 21700640 EAN-13: 4044776949688

Discontinued


Field-attachable Industrial Ethernet plug, RJ45, straight and angled, IP20, suitable for up to 10 Gbit/s, wire manager with PROFINET or TIA color coding .
Type RJ45 Plug
Gender Plug
Mounting Type Cable Mount
Shielded/Shrouded Unshielded
Number of Positions/ Contacts 8
AWG (min.) 7
AWG max. 7
Connector standard RJ45 Cat6
Connector Type Plug, right angle
Cross section (flexible) (max.) 1.1mm²
Cross section (flexible) (min.) 0.85mm²
Cross section (inflexible) (max.) 1.1mm²
Cross section (inflexible) (min.) 0.85mm²
Height 5.5mm
Material Zinc (die-cast)
Misc Attribute ED-IE-90-6A-B-20-FD-FC
Number of Pins 8
Specification CAT 6A
Type A RJ45 plug
Width 10mm
