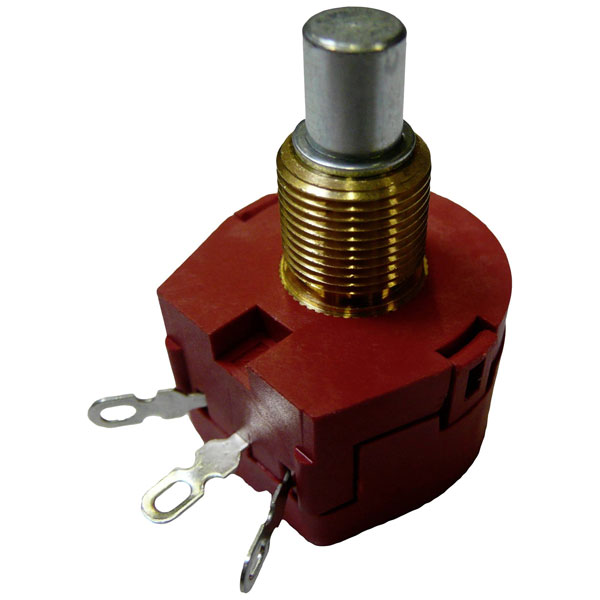

KYOCERA/AVX 3109604023 Wire-wound pot Mono 1W 100Ω Rotary Potentiometer

KYOCERA/AVX 3109604023 is a wire-wound rotary potentiometer designed for precision applications. This mono potentiometer features a power rating of 1 watt and a resistance of 100 ohms, making it suitable for fine-tuning in various electronic circuits. The construction of this component ensures high reliability and accuracy, crucial for applications such as circuit calibration, volume control, and sensor adjustments where precise resistance control is necessary. Utilising durable materials, this potentiometer can withstand repeated use in industrial settings, making it a dependable choice for engineers seeking consistency and longevity in their designs.

Type	3109604023
Resistance	100Ω
Power Rating	1W
Actuating Force	3Ncm
Axle Diameter	6.3mm
Axle length	25.4mm
Case Dimensions	23mm
Connection	Solder tag
Content	1
Cut-off Voltage	300V
Diameter	23mm
Dimensions	(Ø x L) 23 mm x 17.5 mm
Electrical Angle	265°
Impact Tolerance	100Ncm
Length	17.5mm
Maximum Temperature	+90°C
Mechanical Angle	285°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Thread Length	10mm
Thread Size	3/8"
Tolerance ±	0.1%
