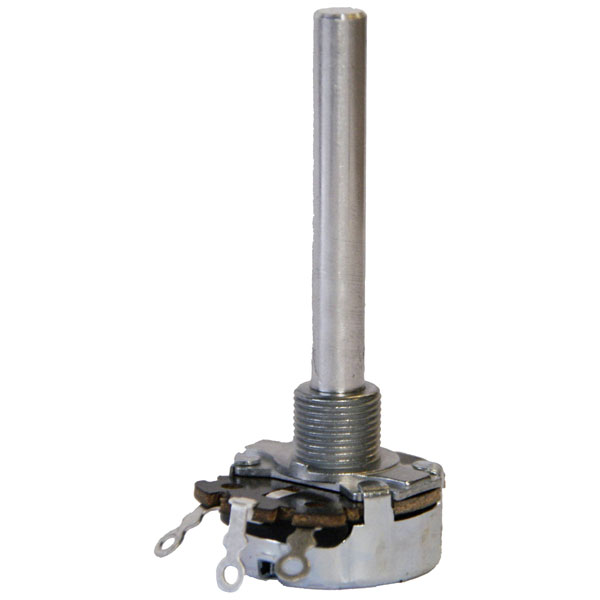

KYOCERA/AVX 3104605995 Wire-wound pot Mono 4 W 1 kΩ Rotary Potentiometer

KYOCERA/AVX 3104605995 is a precision-engineered wire-wound pot mono rotary potentiometer, offering a power rating of 4 watts and a resistance of 1 kO. Characterised by its robust construction, this component is a type of slide potentiometer designed to deliver high reliability and precision in variable resistance applications. Its design allows for seamless integration into circuits where fine tuning of electrical signals is essential, making it particularly suitable for use in audio equipment, industrial machinery controls, and laboratory instrumentation setups. The rotary form factor offers smooth adjustment, enabling precise control over current flow, which is vital in engineering environments requiring meticulous feedback mechanisms.

Type	3104605995
Resistance	1kΩ
Power Rating	4W
Lever Length	50mm
Actuating Force	3.6Ncm
Axle Diameter	6mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 12 mm
Electrical Angle	280°
Impact Tolerance	115Ncm
Length	12mm
Maximum Temperature	+90°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Temperature Coefficient	20ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.1%
