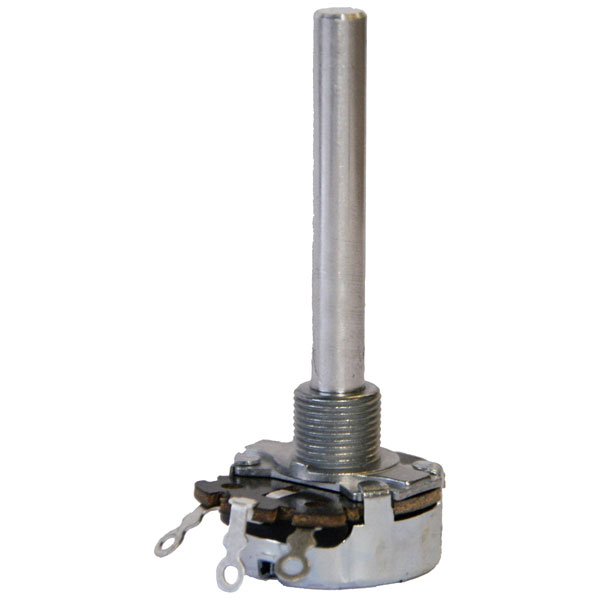

KYOCERA/AVX 3104603599 Wire-wound pot Mono 4 W 50 Ω Rotary Potentiometer

KYOCERA/AVX 3104603599 is a wire-wound, rotary potentiometer that offers a robust solution for precision control applications. This component features a resistance value of 50 ohms and a power rating of 4 watts, making it suitable for use in a variety of electronic circuits where reliable variable resistance is required. It is designed as a slide potentiometer, which allows engineers to adjust resistance with a smooth rotary motion, providing precise control over electrical characteristics in devices. Such potentiometers are commonly employed in audio equipment, calibration instruments, and industrial control systems, where exact adjustment and durability are paramount. The device's construction ensures longevity and stability, making it ideal for applications that demand consistent performance under varying conditions.

Type	3104603599
Resistance	50Ω
Power Rating	4W
Lever Length	50mm
Actuating Force	3.6Ncm
Axle Diameter	6mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 12 mm
Electrical Angle	280°
Impact Tolerance	115Ncm
Length	12mm
Maximum Temperature	+90°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.1%
