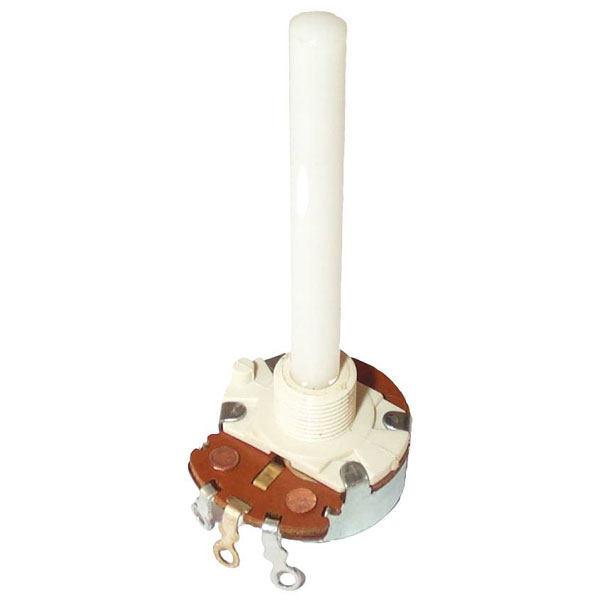

KYOCERA/AVX 104705672 Single turn rotary potentiometer 0.5W 250kΩ 1 piece

KYOCERA/AVX 104705672 is a single turn rotary potentiometer offering a power rating of 0.5 watts and a resistance of 250 kO. Designed with precision in mind, this slide potentiometer ensures reliable performance for applications requiring adjustable resistance. Its compact design makes it suitable for integration into various devices, enabling precise control in electronic circuits. Common engineering applications include use in audio equipment, instrumentation, and control systems where resistance tuning is essential for optimising performance. The robust construction of this single piece ensures durability and stability in demanding environments.

Type	104705672
Resistance	250kΩ
Power Rating	0.5W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Axle length	50mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 11.5 mm
Electrical Angle	270°
Impact Tolerance	113Ncm
Length	11.5mm
Maximum Temperature	+70°C
Mechanical Angle	320°
Minimum Temperature	-25°C
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	linear
Temperature Coefficient	500ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.2%
