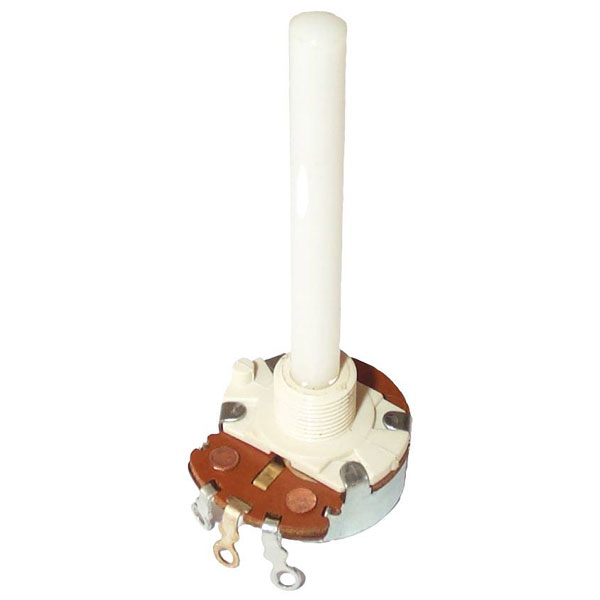

KYOCERA/AVX 104705317 Single turn rotary potentiometer 0.5 W 100 kΩ

KYOCERA/AVX 104705317 is a precisely engineered single turn rotary potentiometer, designed to offer reliable performance with a power rating of 0.5 watts and a resistance value of 100 kO. As a type of slide potentiometer, it provides smooth and accurate adjustments in applications where variable resistance is required. This component is often utilised in applications such as audio controls, instrumentation, and other electronic devices where precise control of electrical parameters is necessary. Its robust construction ensures durability and consistent performance, making it suitable for both commercial and industrial applications.

Type	104705317
Resistance	100kΩ
Power Rating	0.5W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Axle length	50mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 11.5 mm
Electrical Angle	270°
Impact Tolerance	113Ncm
Length	11.5mm
Maximum Temperature	+70°C
Mechanical Angle	320°
Minimum Temperature	-25°C
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	linear
Temperature Coefficient	500ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.2%
