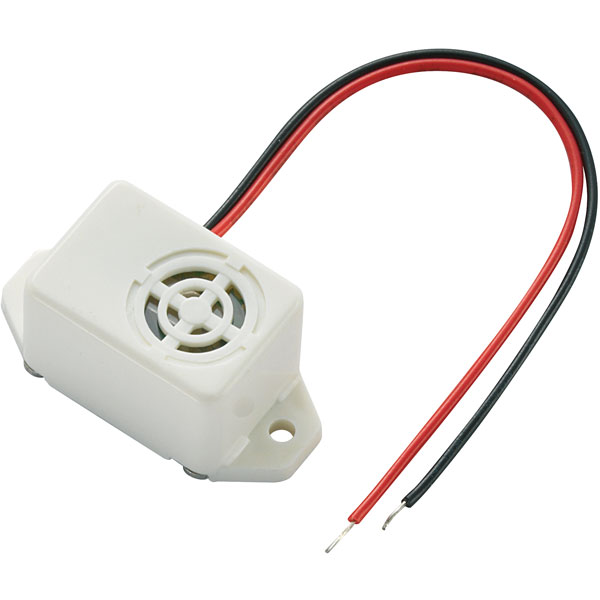

KEPO KPMB-G2212L-K6406 Miniature Buzzer 400 Hz

Order Code:


Brand: KEPO  MPN: KPMB-G2212L-K6406
 Report an error


The KEPO Miniature Buzzer 400Hz is an electronic buzzer that offers a quality pulse tone when energised by a 12VDC (rated voltage). Outputs of up to 80dB/12VDC/20cm can be achieved. Suitable for use in professional, commercial and industrial applications.

  • Small/low profile design
  • Colour White
  • Dimensions 33 x 16 x 14.5mm (L x W x H)
  • Resonance frequency 400Hz
  • Operating temperature -20ºC to +60ºC
  • Operating voltage 9VDC to 15VDC
  • Max. rated current 30mA at 12VDC
  • Manufacturer's part KPMB-G2212L-K6406
  • Frequency 0.4kHz
    Size 33 x 16 x 14.5mm
    Sound Output 80dB
    Tone Pulse
    Type Miniature
    Voltage 12V
