Hongfa HF118FK/24-H5T PCB Relay 24VDC SPST-NO 8A

Hongfa
Order Code:

71-4624

Brand: Hongfa MPN: HF118FK/24-H5T

Discontinued

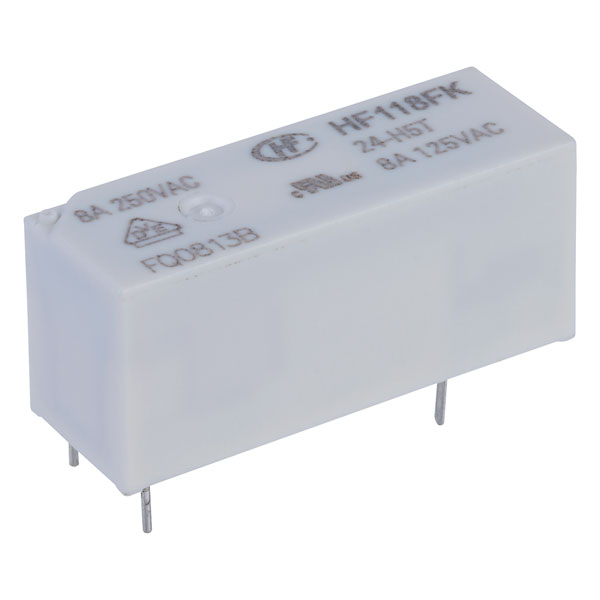

An 8A miniature high power relay from the HF118FK series that comes in a dust protected case. The relay has a 24V DC coil and a SPST-NO contact configuration. The extra low height of just 12.5mm makes it ideal for where space is at a premium.
  • 5kV Dielectric strength
  • Class F insulation
  • >8mm Creepage
  • Meets VDE 0700, 0631
  • 28.5 x 10.1 x 12.5mm
Type HF118FK
Coil Voltage 24V
Contact Configuration SPST-NO
Switching Current 2000VA
Coil Resistance 2350Ω
Length 28.5mm
Width 10.1mm
Height 12.5mm
Mounting Type PCB
Operating Temperature -40 to +85°C
Switching Voltage Max (AC) 440V
Switching Voltage Max (DC) 125V
