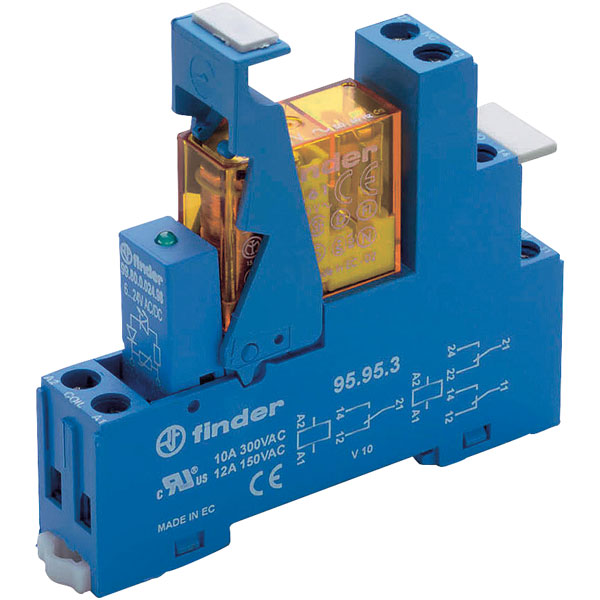

Finder 49.52.9.012.0050 Interface Relay Module 12VDC DPDT + Diode and LED (AgNi)

Finder
Order Code:

51-0484

Brand: Finder MPN: 49.52.9.012.0050 EAN-13: 8012823197531
Qty Unit Price (Ex VAT)
1+ £8.93
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 7 weeks

This module includes a relay, relay socket, bracket and LED module with snubber diode.

Coil Current 8A
Coil Resistance 220Ω
Coil Voltage (DC) 12V DC
Contact Configuration DPDT-CO
Height 75mm
Length 81.9mm
Operating Temperature -40 to +70°C
Switching Current Max 8A
Switching Power 1250VA
Switching Voltage Max (AC) 250V AC
Width 15.5mm

To use this facility please Sign In.

Sign In

Questions

*Question functionality currently disabled
Friday, July 1, 2016 | Question by: Rapid Customer | Product code: 51-0484
Q. Can you suggest an alternative to this one?
A. Hi Peter, thank you for your question. We would suggest 51-0482. We have nothing DPDT in 16A.
Saturday, November 7, 2015 | Question by: Rapid Customer | Product code: 51-0484
Q. Hi, am I right in saying that this would be suitable for switching mains power using a 12v DC input? I have a programmable board which I would like to use to switch a mains power light on and off.
A. Hi James, thank you for your question. The coil voltage is 12V DC and can switch up to 250V AC up to 8A.
