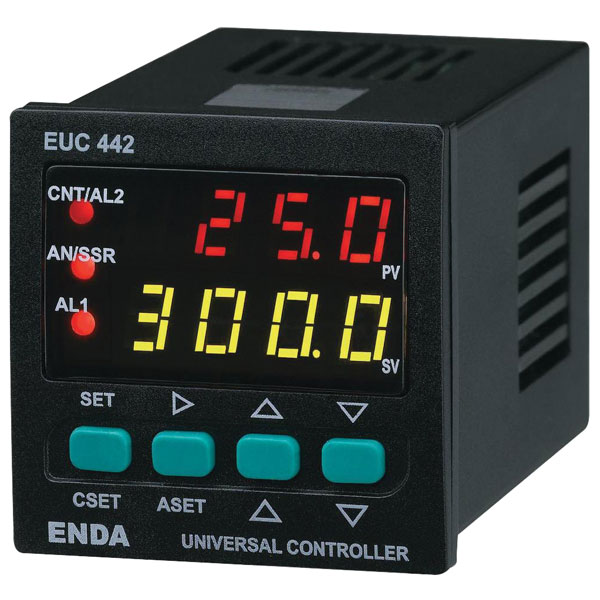

Enda EUC442-230VAC PID Temperature Controller

The Enda EUC442-230VAC is a PID Universal Programmable Digital Temperature Controller with a selectable relay. The EUC442 has been engineered with a 0 to 20mA control power output, and is capable of soft starts and self-tuning operations.

A configurable NO or NC relay can provide operators with 4 variations of output types needed for alarm output production. It is also compatible with Pt100s and thermocouples.

• 48 x 48mm sized
• Selectable sensor type
• Selectable 0 to 20mA or 4 to 20mA input
• Automatic calculation of PID parameters (Self Tune)
• Soft-Start
• Selectable Heat/Cool control
• Selectable 0 to 20mA or 4 to 20mA analogue control output
• Relay output can be programmable as second alarm or control output
• Input offset feature
• In the case of sensor failure relay state can be selected
• Parameter access protection on 3 levels
• Programming by using keypad or Modbus
• CE marked according to European Norms
• Manufacturer's part: EUC442-230VAC
