Buy Emergency Alarm System Kit EASSSZK Stainless Steel Single Zone - a single zone control panel kit, available and used for where
assistance may be required in WC areas, changing rooms, bedrooms etc. With a 2
wire connection between control panel, pull cord, reset button and overhead door
alert flasher, installation could not be simpler making it a must have for new
installations and existing conversions.
The basic system consists of a Control Unit (which is powered by AC mains
supply) connected by an extra low voltage 2-wire link to a Pull Cord Unit which
is in turn connected to an Over-Door Unit by another extra low voltage 2-wire
link. The Over-Door Unit is then connected to a Reset Unit by a further extra
low voltage 2-wire link.
When the pull cord, mounted adjacent to the W.C., is pulled, the red L.E.D.
on the Pull Cord Unit is activated until the system is reset, assuring the
disabled person in distress that the system has been activated. The sounder and
the light on the Over-Door Unit outside the cubicle, are activated
intermittently.
At the Reset Unit inside the cubicle, the light and sounder are activated
intermittently and will both be further reassuring the person in distress. At
the Control Unit the alarm light and the sounder are activated continuously.
Either the Over-Door Unit or the Control Unit will attract the attention of an
appropriate person either directly or indirectly and that person will note the
zone in alarm, press the reset button at the Control Unit clearing the alarm and
then investigate the toilet cubicle in question.
Note: Reset button at the Control Unit can be disabled by
moving the reset selection switch to the OFF position. At any time if the
difficulty is resolved the person in distress can clear the alarm by pressing
the reset button in the cubicle.

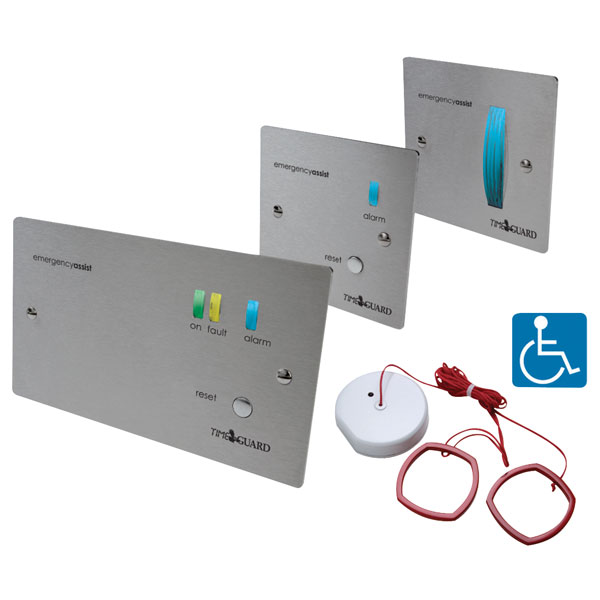

Kit consists of::
- 1 x EASSCP1 - Single Zone (Stainless Steel Finish) Control Panel - 2 gang
- 1 x EASSRB18 - Reset Button (Stainless Steel Finish) - single gang
- 1 x EAPC1 - Pull Cord
- 1 x EASSDF1 - Over Door Flasher (Stainless Steel Finish)
- 1 x EADS - Disabled Sticker
- Manufacturer's part no. Timeguard EASSSZK
| Type |
Alarm system kit |
| Application |
Emergency |
