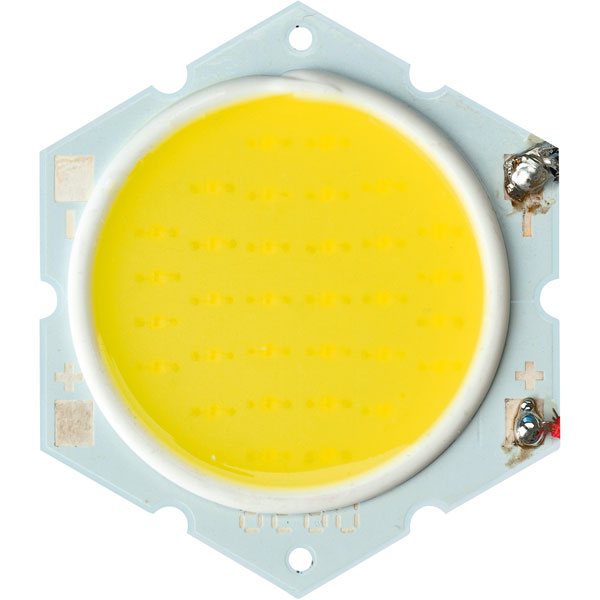

Barthelme 61300255 LED Circuit Board In Small-Chip-On-Board Design White 255 Im

LED circuit board in SCOB design (Small-Chip-On-Board) The advantage of this technology is uniform dissipation of heat via copper carrier on the heat sink - thus results in a simplified thermal management. A redundancy arises by using several small LED chips. Another advantage is the uniform and wide angle of radiation and high lm / W efficiency.

• Colour: White
• Colour rendering index: 75
• Colour temperature type: 6000 K
• Dimensions, height: 2.2mm
• Dimensions, length: 40.41mm
• Dimensions, width: 40.41mm
• Forward current I(F): 300 mA
• Forward voltage U(F): 10.2 V
• Light bulb component type (category): HighPower LED PCB
• Luminous flux (phi): 255 lm
• Power: 3 W
• Radiation angle: 130 °
• Type: 61300255

Depending on the application for which it is used, this product may require an additional heat sink.
