Alpha 63250-01400/A2,5K Slide Potentiometers Linear 2.5KΩ 45mm travel

Taiwan Alpha's 63250-01400/A2,5K Slide Potentiometer is a linear, variable resistor characterised by its 2.5 kO resistance and 45 mm travel, making it suitable for precision control applications. Designed for durability and accuracy, it allows for smooth and consistent resistance changes, tailored to demanding environments such as audio mixing consoles and professional sound equipment, where precise adjustments are paramount. The model, also referred to as APM4A2K5M, demonstrates reliable performance across a range of industrial applications, including instrumentation and control panel interfaces. Known for its robust construction, it ensures long-lasting usability, meeting the rigorous standards of electronic componentry required by engineers. This slide potentiometer is recognised under the alternate description 1694241, ensuring compatibility and ease of specification in alternative contexts.

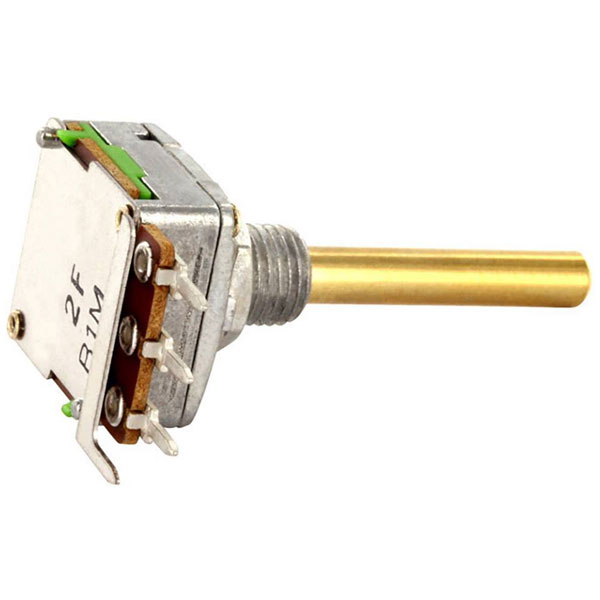

Type	Single turn rotary pot
Resistance	2.5kΩ
Power Rating	50mW
Axle Diameter	4mm
Axle length	30mm
Connection	Print
Content	1
Cut-off Voltage	150V
Maximum Temperature	70°C
Mechanical Angle	270°
Minimum Temperature	-25°C
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	logarithmic
Thread Length	8mm
Thread Size	M7
Tolerance ±	20%
Torque (max.)	2Ncm
