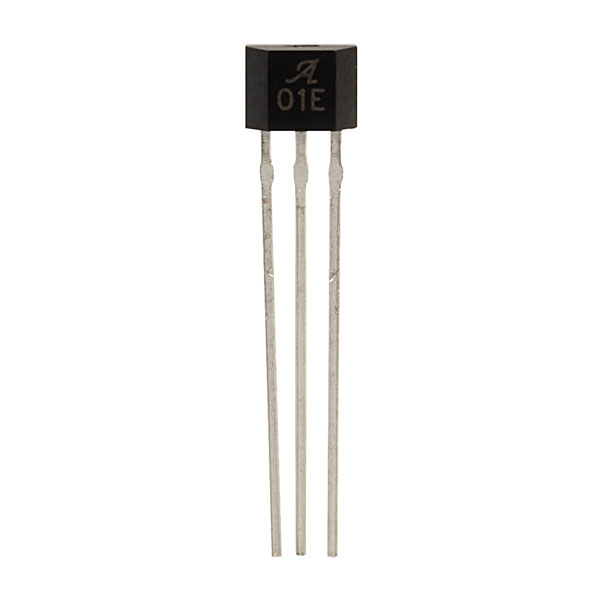

Allegro A1104EUA-T Hall Effect Unipolar Switch 3.8-24V 25G to 450G 3 Pin SIP

The A1104EUA-T is a Hall effect switch, in a 3-pin SIP package, that is capable of continuous-time operation and features fast power-on time and low-noise operation. The device is factory-programmed at end-of-line for optimum performance. An integrated voltage regulator allows a wide operating voltage range and the switch has stable operation over the full operating temperature range.

For extensive application notes that cover a number of industrial, commercial and consumer applications please see here.

• Operate point 450G
• Release point 25G
• Solid-state reliability
• Reverse battery protection
• Robust EMC performance
• High ESD rating
• Regulator stability without a bypass capacitor
• AEC-Q100 automotive qualified
