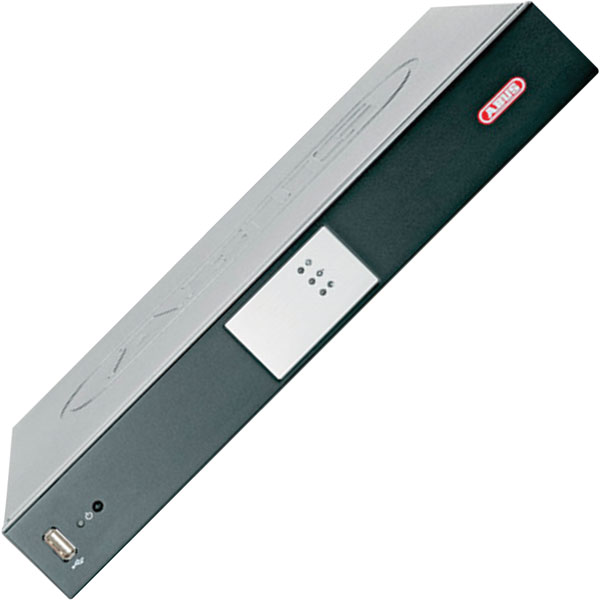

ABUS TVVR30003 4-Channel Compact Digital Recorder

The ABUS TVVR30003 4-Channel Compact Digital Recorder features state-of-the-art recording technology with H.264 compression, real-time recording and VGA connection at an unbeatable price. With simple mouse operation, the 4-channel compact digital recorder (DVR) is an ideal entry level device for the world of digital video surveillance.

The compact size (only 31.5 x 4.5 x 21cm) means it is ideal for use in areas with limited space, such as underneath a counter – and is also flat enough so that a monitor can be placed on top. Using the DVR, images from up to four cameras can be saved and archived on a SATA hard disk drive (max. 2 TB). Setting up the camera is child's play – simply connect the cameras and monitor and you are done.

The DVR records images from each camera in CIF resolution (352 x 288 pixels) and in real time, while thanks to the highly-efficient H.264 compression, video images are saved in optimal quality, take up little storage capacity and are optimally suited for network access. Depending on requirements, recording is started manually, according to a schedule, using a motion detector or following an alarm (four alarm inputs available). Data is exported quickly over the two integrated USB interfaces.

The live view, playback and data export can be carried out simultaneously (Triplex operation). An RS-485 interface also allows the control of pan/tilt cameras (PTZ), while the supplied remote control means the DVR is operated easily in the same way as a normal DVD player. If required, a spot monitor can be connected that shows the relevant camera images in full-screen mode in the event of an alarm or motion detection. Modern network technology allows global access to image data via LAN and over the Internet. With an Ethernet connection, H.264 compression and the support of dynamic DNS addresses (DynDNS), the compact DVR recorder is the ideal platform for integrating up to four analogue cameras in a digital network –you can also access your surveillance data externally without any problems using DynDNS.

Real-time recording at full resolution: 4CIF @ 25 fps

H.264 data compression – effective use of storage space

Installation wizard for easy initial start-up

Network connection for worldwide access

Quick data backup via USB

Integrated VGA connection

TVVR30003

210 x 315 x 45 mm (W x H x L)

OSD signal, e-mail alarming

1-4 views

Recording resolution @ frame rate per camera (NTSC): 352 x 240 (CIF) @ 30 fps, 704 x 576 (4CIF) @ 30 fps

Recording resolution @ frame rate per camera (PAL): 352 x 288 (CIF) @ 25 fps, 704 x 576 (4CIF) @ 25 fps

Live view resolution: PAL: 704 x 576 (4CIF), NTSC: 704 x 480 (4CIF), VGA: 1024 x 768

Recording modes: Manual, schedule, motion detection, alarm

Recording duration at max. resolution and frame rate: 209 hours/TB

Recording duration at min. resolution and frame rate: 417 hours/TB

Triplex operating mode

2 x USB 2.0 storage

Ja DDNS

100 total frame rate (PAL)

24 simultaneous network access

Not hybrid-enabled

No camera outputs

4 x BNC (1.0 V p-p, 75 Ω) camera inputs

Analog compression levels: 6

-10°C to 55°C operating temperature

iDVR (Apple iOS & Android)

Monitor: 1 x BNC (1.0 V p-p, 75 Ohm), Spot: 1 x BNC (1.0 V p-p, 75 Ohm), VGA: 1 x VGA

2.8kg net weight

RJ45 10/100 Mbps network access

Live view, playback, data export, settings

No network cameras

Ja NTP

PTZ protocols: PELCO-D, PELCO-P, Samsung, LG-MULTIX

RS-485 PTZ control

ABUS CMS Software

12V DC voltage supply

1 x S-ATA HDD port storage medium

OSD language: German, English, French, Dutch, Danish

Mouse, remote control (not included)

Event, date & time search modes

4 analog video channels

4 total video channels

0 HD-SDI video channels

0 IP video channels

H.264 video compression

0~30/5-900s pre-alarm/post-alarm memory

CE certified

Digital recorder · Power supply and power cable · USB mouse · Remote control (batteries not included) · Recorder software · User manual.

Dimensions	(W x H x D) 210 x 315 x 50mm
