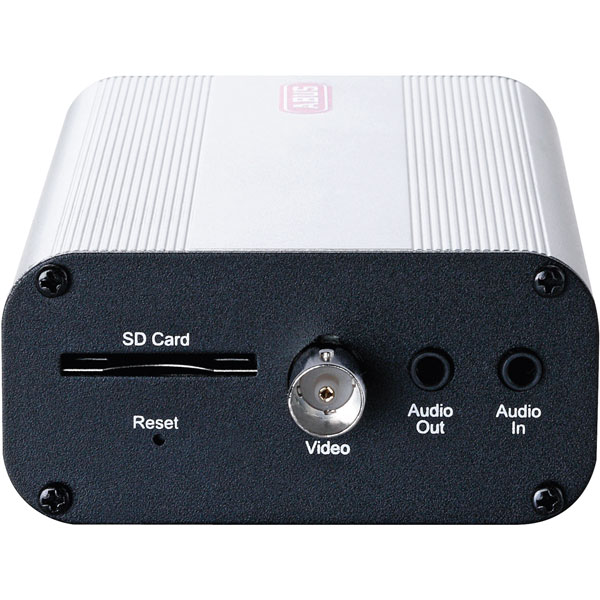

ABUS TVIP40000 D1 Network Video Server

The ABUS TVIP40000 D1 Network Video Server The D1 dual stream network video server is used to integrate analogue cameras in digital networks, regardless of the model. Thanks to effective H.264 compression, the server streams camera recordings at high performance, in full D1 resolution and in real time.

The server is equipped with a PoE function for flexible and simple installation without an extra power supply - only an IP cable is required for power and data transmission. Apart from this, the video server is characterised by a variety of intelligent functions. Many safety functions can be realised using the audio/alarm input and output. An SD card can be installed, resulting in additional data security in the event of system failure.

TVIP40000

Used for integrating analog cameras in networks

H.264 compression – effective use of storage space and bandwidth

Real-time streaming at D1 resolution

PoE function

Integrated SD card slot

Audio and alarm I/O

RS-485 interface for controlling Speed Dome cameras

75 x 35 x 150mm (W x H x D)

E-Mail/FTP/HTTP notification/relay output/network drive

4 number of streams

Audio output (Speaker Out), audio input, 2-way audio, audio recognition

176 x 144 - 720 x 576 pixel

3 motion detection zones

720(H) x 576(V) pixel (effective)

720(H) x 576(V) pixel (total)

Frame rate: H.264 720x480 @ 30FPS, 720x576 @ 25FPS, MPEG-4 720x480 @ 30FPS, 720x576 @ 25FPS, MJPEG 720x480 @ 30FPS, 720x576 @ 25FPS fps

4 digital zoom

Backlight compensation

5W power consumption

640 x 480 @ 25 fps max. resolution @ frame rate

55°C max. operating temperature

0°C min. operating temperature

243kg net weight

RJ45 LAN network access

IPv4, IPv6, TCP/IP, HTTP, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, CoS, QoS, SNMP and 802.1X network camera protocols

802.3af PoE

1 relay output

24V AC voltage supply

12V DC voltage supply

SDHC 32 GB Storage medium

420mA power consumption

HTTPS SSLv3 encryption

H.264, MPEG-4, MJPEG video compression

10s pre-alarm/post-alarm memory

CD, RoHS, C-Tick certified

Video server · 12V power supply · Wall holder includes fastening clamps · Installation CD including VMS Express · Quick instructions.
