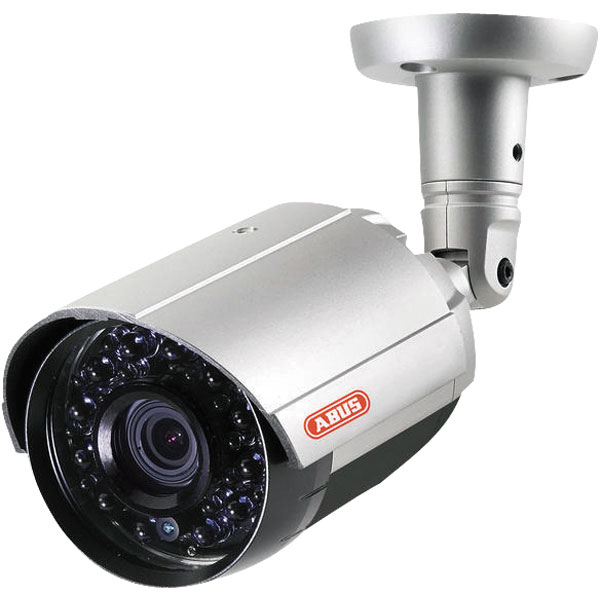

ABUS TVCC60011 WDR DNR IR Vario 650 TVL Outdoor Camera

The ABUS TVCC60011 WDR DNR IR Vario 650 TVL Outdoor Camera offers brilliant resolution in any light and weather condition.

Thanks to this waterproof WD DNR IR Vario outdoor camera with 650 TV lines, you can be sure of high-quality recordingsm - and all that with minimal camera noise: due to the latest 2D DNR technology (Digital Noise Reduction); this stops picture noise which conceals the details or which could be interpreted as motion by the recorder (reduction of data volume by up to 50%).

The camera produces colour pictures in the daylight and switches to b/w mode in the dark - 30 integrated infrared LEDs (IR) provide illumination (max. range 40m). The camera is also equipped with the innovative Sony 1/3" Exview HAD II CCD image sensor that provides high-resolution recordings with 650 TV lines. The focal length of the integrated variofocal lens with auto-iris function is between 3.3 and 12mm.

Another advantage of this camera series: the beam angle and intensity of the LEDs can be adjusted to any environment (avoiding fading and badly-lit areas). The WDR-ATR (soft WDR function), AGC and ATW features also ensure optimum picture quality. The robust IP66 design guarantees use, even in difficult environmental conditions, making it perfect for outdoor use – without any extra protective housing. The fully internal cable routing (in the bracket) also ensures optimum protection against poor weather conditions and tampering. Quick installation ensures that the focus, zoom and IR light (intensity/beam angle) can be adjusted from outside the device.

High resolution of 650 TVL

Function for digital noise suppression (2D DNR)

Day & night camera with electromechanically removable IR cut filter

Weather-proof camera housing and mount with internal cable routing (IP66)

Manual zoom/focus settings accessible from the outside

IR LEDs for night vision with adjustable intensity

TVCC60011

88 x 84 x 239.5mm (W x H x D)

BNC, DC (5.5 x 2.1mm) connections

1/3" Sony Exview HAD II CCD image sensor

976 (H) x 582 (V) pixel (effective)

1020 (H) x 596 (V) pixel (total)

3.3-12 mm focal length

1.6kg gross weight

Sony Effio-E DSP

46 (max.) dB dynamic range (WDR)

1/50s~1/100000s electronic shutter

Soft WDR backlight compensation

23.9-89.8° horizontal angle of view

55/30° IR angle

12 x LED (8mm), 18 x LED (5mm)

40m IR range

Outdoor camera

50°C max. operating temperature

85% max. humidity

-10°C min. operating temperature

0.1 minimum illumination (colour)

0 minimum illumination (IR)

0.05 minimum illumination (B/W)

1.1 kg net weight

Vario-Objektiv mm lens

3.6x optical zoom

2D DNR noise reduction

IP66 protection class

50 signal-to-noise ratio

12V DC voltage supply

480mA power consumption

Day/night switching: IR cut can be swivelled electromagnetically

650 TVL

32 amplifier control

FBAS (1 Vss, 75 Ohm) video output

ATW, 1800~10500K white balance

CE certified

Day/night Vario outdoor camera · 3-axis wall/ ceiling holder (pre-installed) · 2 m connection cable for video signal and power supply (pre-installed) · Fixed spanner · Fixing material (Screws, raw plug) · User manual.
