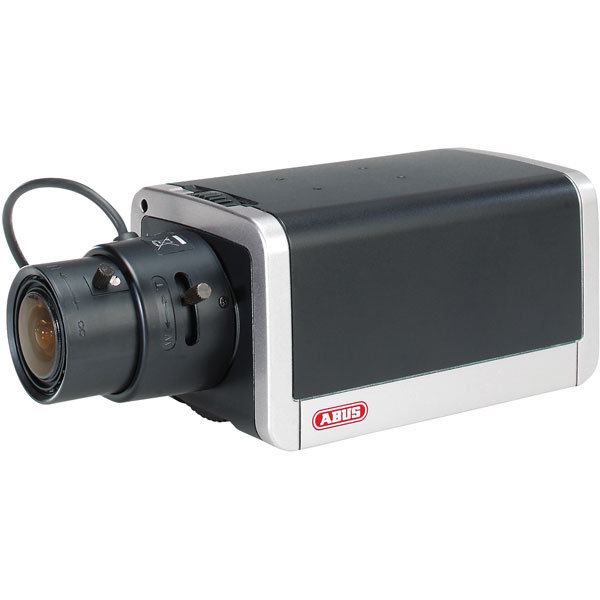

ABUS TVCC50030 WDR 3D DNR day/night 650 TVL Camera, 12 VDC / 24 VAC

The ABUS TVCC50030 WDR 3D DNR Day/Night 650 TVL Camera, 12VDC/24VAC provides high-definition images (650 TV lines) in outstanding quality – in all light conditions and at night, thanks to combined 3D DNR and WDR technology.

The light-sensitive 1/3'' CCD Sony Super HAD II™ image sensor with 1028 (H) x 596 (V) pixel resolution (total; High Resolution True Color) is ideal for use in poor light conditions and offers clear-cut images, even at night. The Sony Effio™ signal processor allows exact image optimization, including precise, quick adjustment in changing light conditions.

The QIS function (Quick Installation System) allows the most important camera parameters to be set quickly, while the WDR function (Wide Dynamic Range) ensures that both dark and bright image areas are illuminated optimally (ideal for backlight and high contrasts etc.). The camera makes several recordings with different exposure times, then combines them into one image. The state-of-the-art 3D DNR function (multi-dimensional digital noise suppression) minimizes interferences caused by image noise, resulting in significantly improved image quality at night (plus reduced storage capacity requirements, as noise is not stored). The camera automatically switches to the light-sensitive black/white mode in darkness.

A wide range of lenses are available: C-mount and CS-mount lenses can be attached to this camera, with or without auto-iris function. The back focus is set comfortably using the rotary knob – 16 freely-configurable privacy masks are available. In addition, the camear is equipped with the BLC, AGC and AWB/ATW functions. Top features include motion detection using the camera and the control of external consumers (siren, illumination control etc.) via a relay output. The device is operated using the 12VDC/24VAC power supply unit (for operation with 240VAC, see TVCC50530 (identical design)). Programming of this high-resolution, high-performance all-round camera is made easily using the on-screen display (OSD).

TVCC50030

Sony Effio-P DSP technology with a resolution of 650 TVL

Sony Super HAD II CCD image sensor with 960H technology

Used in conditions with high contrast ratios as well as low lighting

Function for digital noise suppression (2D and 3D, motion optimized)

OSD programming with QIS (Quick Installation System) function

Privacy masking and motion detection

12 VDC/24 VAC dual-power technology

68.91 x 58.5 x 121.3mm (W x H x D)

2 x BNC, DC (5.5 x 2.1mm, 2-Pin) onnections

Back focus adjustment

1/3" Sony Super HAD II Dual Scan CCD

976(H) x 582(V) pixel (effective)

1028(H) x 596(V) pixel (total)

0x~4x image integration

1.0, 3 aperture at minimum illumination (color)

0x - 5x, 8 level digital zoom

Sony Effio-P DSP

(WDR): 54 (max.) dB dynamic range

AES/AI electronic shutter

WDR, BLC backlight compensation

Standard camera

4.5W power consumption

50°C max. operating temperature

8% max. humidity

-10°C min. operating temperature

0.005 Lux @ F1.0, 30 IRE (AGC) minimum illumination (color)

0 Lux @ F1.0, 30 IRE (AGC) minimum illumination (IR)

0.005 Lux @ F1.0, 30 IRE (AGC) minimum illumination (B/W)

0.42kg net weight

CS/C lens mount

DC lens control

16 private zones

2D + 3D DNR noise reduction

50 signal-to-noise ratio

24V AC voltage supply

12V DC voltage supply

DC control

375mA power consumption

IR cut can be swivelled electromagnetically day/night switching

650 TVL

62.8dB (max.), 32 level amplifier control

FBAS (1 Vss, 75 Ohm) video output

PAL video system

ATW/AWB/PTL white balance

CE certified

Lens is not included in delivery.
Camera · C-Mount Lens adapter ring · Base for camera holder including screws · Connecting cable for 12V/DC voltage supply · User manual.

Resolution	650 TVL
Additional IR light	Yes
Camera type	Box camera
Current Consumption	4.5W
Dimensions	(W x H x D) 69 x 59 x 121mm
Image sensor	8.5 mm Sony Super HAD II Dual Scan CCD
Microphone	No
Operating Temperature Range	-10 to +50°C
Operating Voltage	12 V/DC, 24V AC
Outputs (Ohm)	2 x FBAS, 1V s-s 75 Ω (BNC) DC/AC Relay (60 V/DC with 400 mA)
Place of operation	Indoor
Protection Type	IP34
