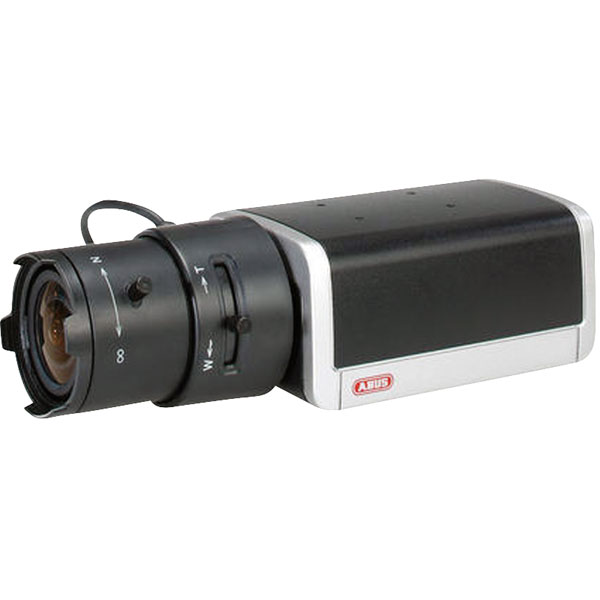

ABUS TVCC20530 Day/Night 520 TVL Standard Camera

The ABUS Surveillance Camera CCD Colour 520 TVL TVCC20530 Resolution is a standard day/night camera meets demanding requirements at the mid-range level and achieves brilliant images around the clock - in light or darkness. Below a certain brightness, it automatically switches from colour to the light-sensitive B/W mode.

This model is equipped with a 1/3" Sony Colour Super HAD CCD with a light-sensitivity of 0.2 lux (depending on aperture), while also boasting 520 TV lines, the video images are of excellent quality (High Resolution). The camera additionally features an IR blocking filter with magnetic swivel function. In daylight, this filter covers the CCD to prevent infrared light from reaching the image sensor - in darkness, this filter swivels away (light-sensitivity 0.01 lux depending on aperture) and the infrared light from an external IR emitter needed for night imaging hits the CCD.

The day/night camera is compatible with C-Mount and CS-Mount lenses and feature AES (Automatic Electronic Shutter), BLC (Back Light Compensation), AGC (Automatic Gain Control) and AWB (Automatic White Balance) for optimal image quality in different lighting situations. This powerful mid-range model operates on 230VAC (for 12VDC see the structurally identical TVCC20030). The camera also convinces with its low power consumption. Handy for installation: simple setup and configuration via easily accessible DIP switches.

1/3" Sony Super HAD CCD

Resolution of 520 TV lines

Image optimization thanks to DSP technology

Day/night camera with electromechanically removable IR cut filter

Suitable for the use of IR light

Integrated 230 V AC power supply unit

55.5 x 40.5 x 99mm (W x H x D)

Connections: BNC, DC (5.5 x 2.1mm, 2-Pin)

Image sensor: 1/3" Sony Super HAD CCD

Pixels (effective): 752(H) x 582(V) pixel

Pixels (total): 795(H), 596(V) pixel

Aperture at minimum illumination (color): 1.0, 30

Aperture at minimum illumination (IR): 1.0 30

DSP: Nextchip

Electronic shutter: AES/AI

Backlight compensation: BLC

Camera outputs: 1 x V s-s, 75 Ohm

Camera type: Standard camera

Max. operating temperature: 50°C

Max. humidity: 85%

Min. operating temperature: -10°C

Net weight: 0.29kg

Lens mount: CS/C

Lens control: DC

IP protection class: 34

Signal-to-noise ratio: 48

AC voltage supply: 110-230V

Control: DC

Power consumption: 190mA

Day/night switching: IR cut can be swivelled electromagnetically

TVL: 520 TVL

Amplifier control: AGC, Off

Video system: PAL

White balance: AWB

Certifications: CE, UVV

Lens not included in delivery.
Standard camera · C-Mount Lens adapter ring · Sockel for camera holder includes screws · Distance element for weather proof casing · User manual.

Additional IR light	No
Camera type	Box camera
Current Consumption	2.3W
Dimensions	(W x H x D) 56 x 41 x 99mm
Image sensor	8.5 mm Sony Super HAD CCD
Light sensitivity	0.2lx
Microphone	No
Operating Temperature Range	-10 to +50°C
Operating Voltage	230V AC
Outputs (Ohm)	1x Vss (75 Ohm)
Place of operation	Indoor
Protection Type	IP34
Resolution	520 TVL
Specification	Colour
