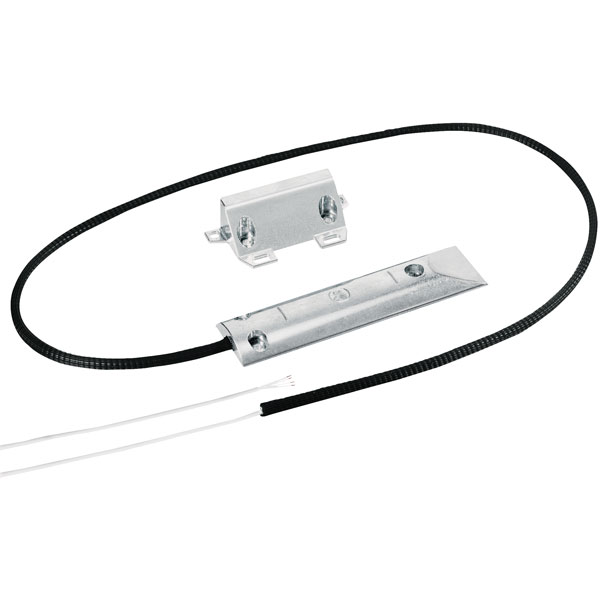

The ABUS MK4100 Door Opening Detector with External Field Protection 2m 4-Core is a magnetic contact for protecting large (garage) doors. Unauthorised opening is detected and reported to the alarm panel.
The door opening detector is mounted chiefly on roll-up, sliding, and up-and-over doors, while the detector consists of a magnetic contact (reed) and a magnet. These are fitted parallel to each other. The electric circuit of this NC opening detector is normally closed (NC). If the distance between reed and magnet increases, the circuit is broken and an alarm reported.
The detector is tamper-protected and stray-field protected - stray-field protected means that only the magnet belonging to this opening detector has the right field strength to keep the electric circuit closed. Any change to the field strength (e.g.: by another magnet) breaks the circuit and an alarm is triggered.
The best installation location is in the middle of the entrance. The magnetic contact is mounted on the ground and the magnet on the inside of the door at a distance of about 20mm - the door opening detector is perfectly suited for surface-fitting. It is absolutely water and dust-proof (IP68), while the extremely robust aluminium housing protects it from damage even when driven over. The door opening detector is VdS C certified.
Magnet contact for flush and surface fittingNC switch contact2m cable/4-coreMK4100180 x 14 x 45mm (W x H x D)NC, max. contact capacity 60V DC/AC/300mA/3W connectionsMagnetic field measurementStray-field protectionAluminium housing material4-core cable type2m cable length55°C max. operating temperatureSurface mountingTamper monitoringIP65 protection classReed contact sensor VdS C certified
| Type |
Opening detector |
| Wireless |
No |
