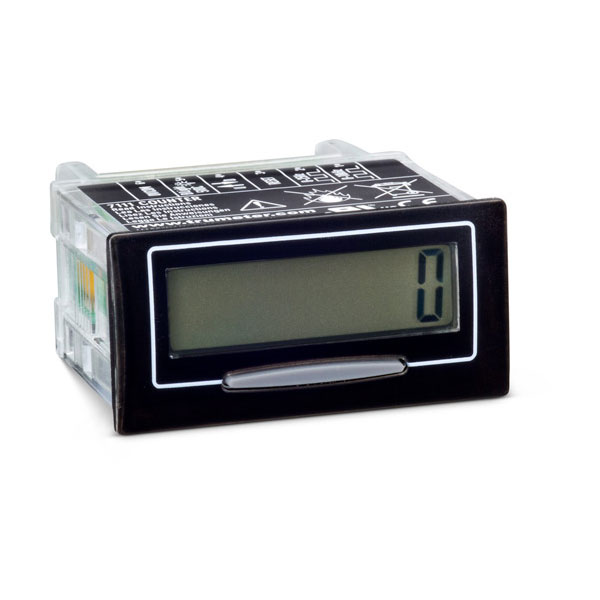

Trumeter 7111HV TOTALIZER - 10-110VDC/10-240VAC

The 7111HV is compact, self-powered, bi-directional totalizer suitable for a wide range of applications. It supports triggering from between 10-240VAC or 10VDC-110VDC. Mounting options include front panel with a supplied bezel or a rear mounting clip, sealed to IP65. Installation is easy, with screw connections on the rear for quick setup. The 7111 series is CE, UL, and cUL approved.
• Use of the latest CMOS circuitry achieves an expected battery life of 10 years • Connection using built in screw terminals • 9mm black high contrast LCD display • Backlight (externally powered) 5V DC • Permits triggering from any voltage between 10-240V AC or 5-110V DC ±10% • Choice of mounting available, front panel with supplied bezel or rear mounting clip • Front panel can be sealed to IP65 • Installation is simplified with a screw connection on rear for quick and simple connection • CE, UL and cUL

Type	Totalizer
