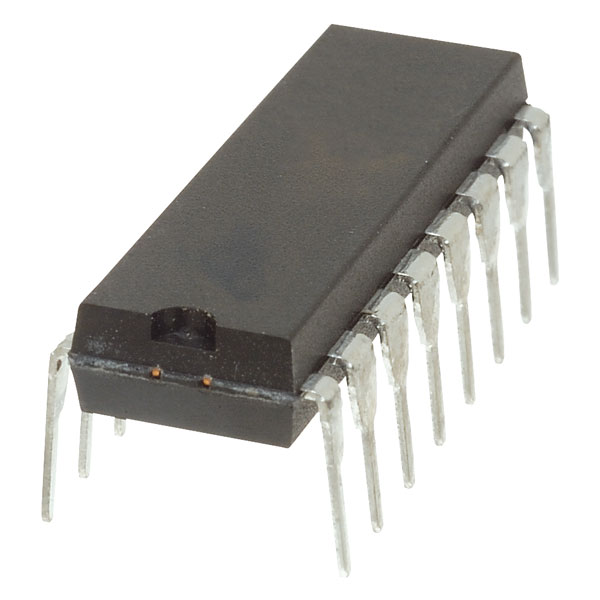

Texas Instruments L293NE 4 Channel Half-H Bridge Driver

Texas Instruments
Order Code:

82-0201

Brand: Texas Instruments MPN: L293NE

Discontinued


This quadruple output half-H bridge driver is a high current device that is ideal for driving a wide range of inductive loads such as relays, solenoids, DC and bipolar stepper motors and other high current/high voltage loads in positive-supply applications.


  • 1A output current per channel
  • Separate input-logic supply
  • All inputs are TTL compatible
  • Each output is a complete totem-pole drive circuit
  • Drivers are enabled in pairs
  • Thermal shutdown
  • Internal ESD protection
  • High noise-immunity inputs
Type L293NE 4-Channel half-H bridge driver

Questions

*Question functionality currently disabled
Wednesday, June 13, 2012 | Question by: Rapid Customer | Product code: 82-0201
Q. Are the freewheel diodes integrated?
A. Hi Colin, thanks for your question. There is no mention of free wheel diodes in the data sheet, however, there is a mention that output diode are internal in the 293 version - which this product is.
