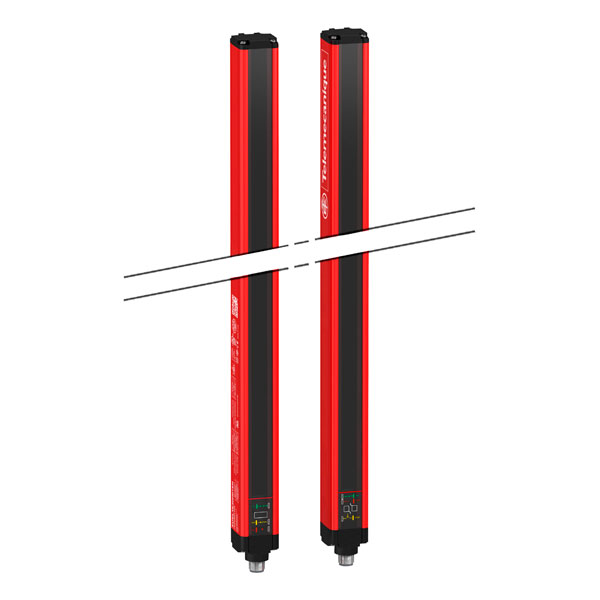

Telemecanique XUSL4E30H046N Type 4 23 Beam 30mm Resolution Light Curtain

The Telemecanique XUSL4E30H046N safety light curtain system generates an array of 23 infra-red beams that are used to ensure the security of an operator by stopping machines, etc., when at least one of the light beams is interrupted.

The system consists of a microprocessor-controlled receiver and transmitter facing each other. An array of infra-red LEDs is located in the transmitter that emits infra-red beams to photo-sensitive cells located in the receiver. The infra-red LEDs are triggered sequentially and the receiver photo-cells are synchronized to detect only the corresponding beam.

• Voltage rating: 24V DC
• Max. current rating: Tx 42mA; Rx 900mA
• Outputs: 2x PNP, 400mA @ 24V DC per output
• 23 beams
• Protected height (Hp) 460mm
• 30mm resolution for hand protection
• Telemecanique type XUSL4E30H046N
