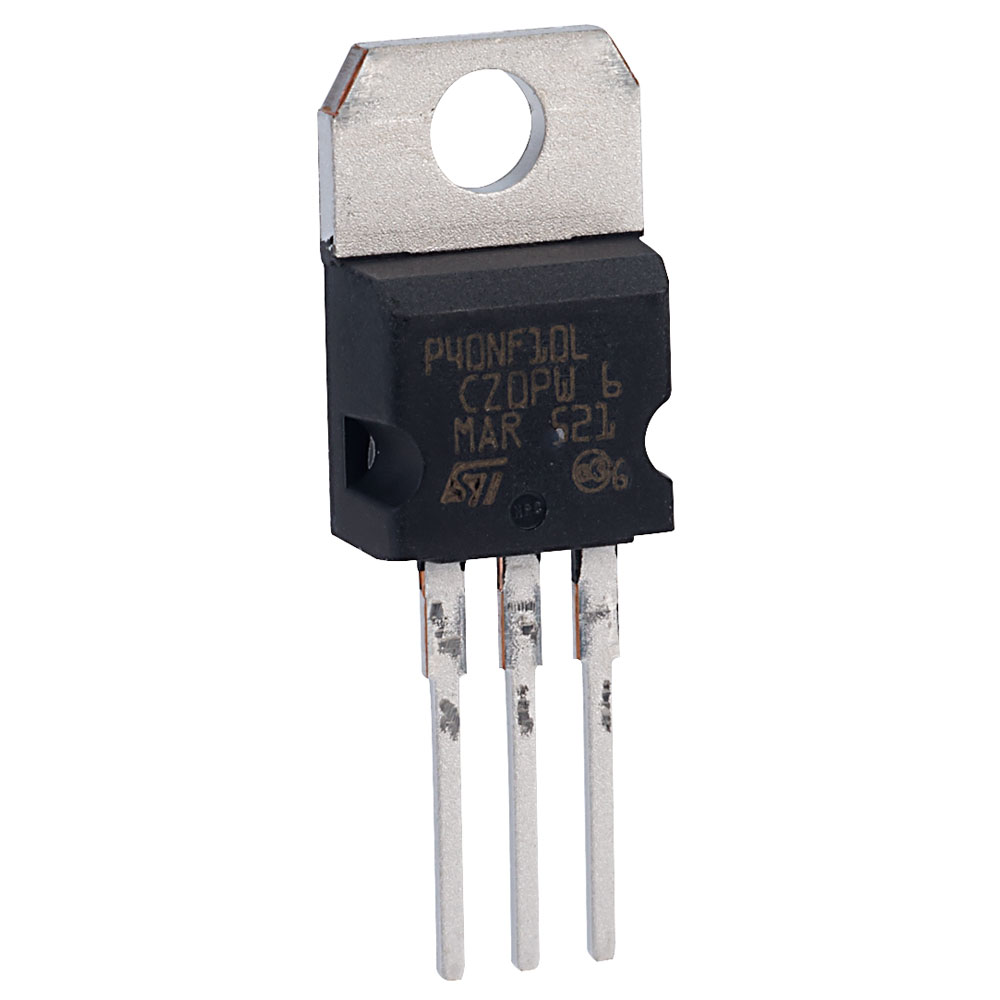

STP40NF10L MOSFET Logic N 100V 40A

ST
Order Code:

47-0554

Brand: ST MPN: STP40NF10L

Discontinued


Striped power MOSFET, N-Channel type, suitable for switching applications.


  • Exceptional DV/DT capability
  • Application oriented characterisation
  • Drain-source breakdown voltage 100V
  • Drain-source on-resistance 28mR
  • Drain current 40A
  • Gate source voltage 17V
  • Turn-on time 25ns
  • Turn-off time 64ns
  • Power 150W
  • TO-220 case
Channel Type N-Channel
Drain Current 40A
Package Type TO-220
Gate Source Voltage 17V
Drain-Source Breakdown Voltage 100V
Drain-Source On-Resistance 0.033Ω
Power Dissipation 150W

Questions

*Question functionality currently disabled
Wednesday, March 1, 2017 | Question by: Rapid Customer | Product code: 47-0554
Q. Re the 47-0554 MOSFET: is the heat tab isolated or connected to the Drain ? Thanks
A. Hi Edward, thank you for your question. These MOSEFETs are not isolated and the heat sink tab is connected to the centre pin (drain).
