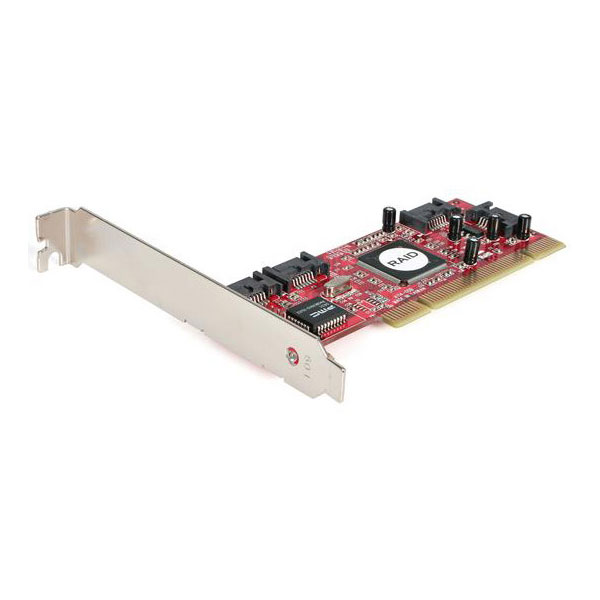

This 4 Port PCI SATA RAID controller from StarTech.com lets you add four internal SATA 1.0 (1.5 Gbps) ports to your PC through a single PCI expansion slot, while offering support for several RAID modes or a simple JBOD (Just a Bunch of Discs) configuration.
The card provides increased performance and capacity with RAID 0 (Striping), or a redundant copy of your hard drive with RAID 1 (Mirroring). Configuring in RAID 10 (aka RAID 0+1) lets you leverage both by creating a mirrored copy of your striped disk set.
The SATA RAID card supports RAID 1+S (Mirror + Spare), which uses a third installed drive to automatically replace a failed drive and rebuild the mirrored set - even if it is the boot drive that failed.
For the ability to fit most standard computer cases, the card ships with a standard profile bracket installed and includes a low profile bracket for adapting to slimline or small form factor systems.
It is backed by a StarTech.com lifetime warranty and free lifetime technical support.
- Bus type: PCI / PCI-X (5 / 3.3V)
- Card type: Standard profile (LP bracket included)
- Connector type(s): PCI/PCI-X (universal 3.3 & 5V, 32-bit) male
- Interface type & rate: SATA I (1.5 Gbps)
- Internal ports: SATA (7 pin, data) plug
- Maximum data transfer rate: 1.5Gbps
- OS compatibility: Windows® 10, 8 / 8.1, 7, Vista, XP, 2000
- Ports: SATA (7 pin, data) plug, 4
- RAID: Yes
- Supported RAID modes: CLONE (RAID 1 + spare), JBOD - (just a bunch of discs), RAID 0 (striped disks), RAID 1 (mirrored disks), RAID 10 (1+0, striped set of mirrored subset)
- Product dimensions: 120 x 45 x 22mm
- Manufacturer's part no. PCISATA4R1
Note: While the PCISATA4R1 card supports any size hard drive in JBOD mode, the maximum supported drive size when in RAID mode is 2 TB (per port).
| Type |
PCI SATA RAID controller |
| Interface |
SATA I |
