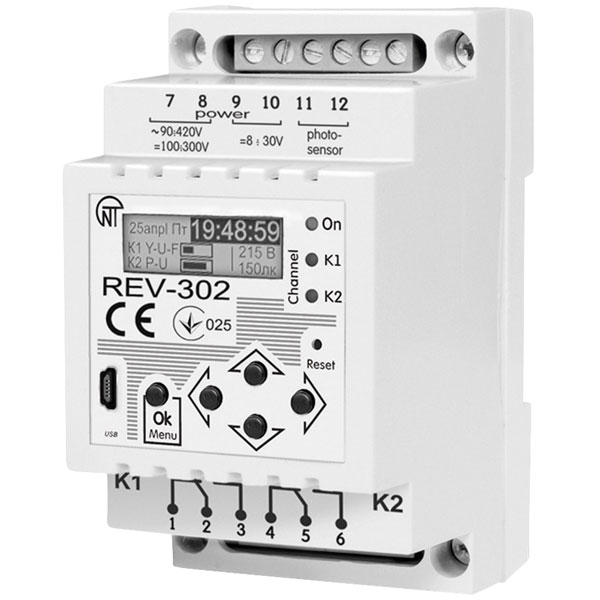

Novatek REV-302 M Time Relay 2 Outputs

The Novatek REV-302 M multi-functional relay is a microprocessor-based programmable device designed to switch one or two loads within user-set time intervals based on the circuit voltage and the external light level.

Applications include security lighting, emergency lighting, illuminated signage, power failure back-up, etc., where the ambient light level is a factor in the switching decision.

• 2 switching contact groups rated at 16A, 250V
• Power supply: 220V, 50Hz AC or 24V DC
• Time relay, voltage relay and photo relay
• Combined or independent operation
• 10 year calendar
• Daily, weekly, monthly, and yearly time relay program
• Independent events settings for each program
• Programmable holiday and day off list option
• Contacts close/open based on minimum and maximum circuit voltage
• Temporary delay for the after-energization relay start
• External photo sensor
• Status indication for each contact group
• Loading preset control programs via USB with use of supplemental software
• Password protection option for the settings menu
• Novatek type REV-302 M
