Microchip PICKIT 1 Signal Analysis Board Kit

Microchip
Order Code:

97-0105

Brand: Microchip MPN: AC164120

Discontinued

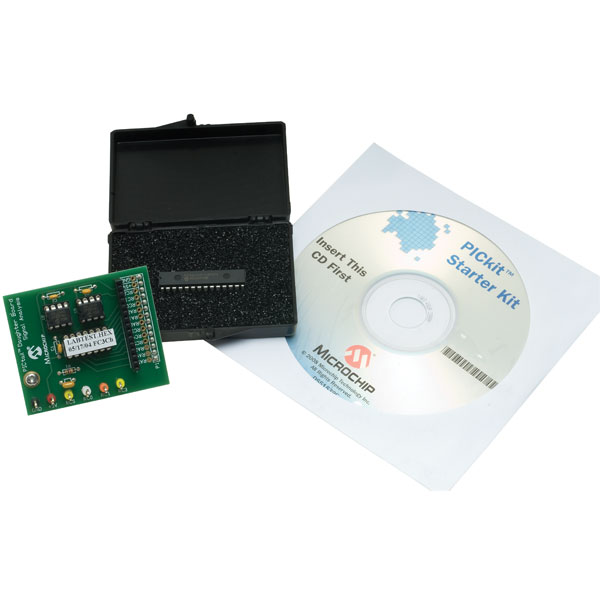

The PICtailDaughter board works as an extension to the PICkit 1 Flash Starter kit, providing a signal analysis function. When combined with the PICkit 1 V2 firmware and the signal analysis PC application the PICtail can carry out such functions as real-time strip chart, oscilloscope, fast fourier transformation, histogram and programming.
  • Used in conjunction with PICkit 1 Flash Starter Kit (97-0107)
  • PICtail plugs into Flash starter kit header J3
