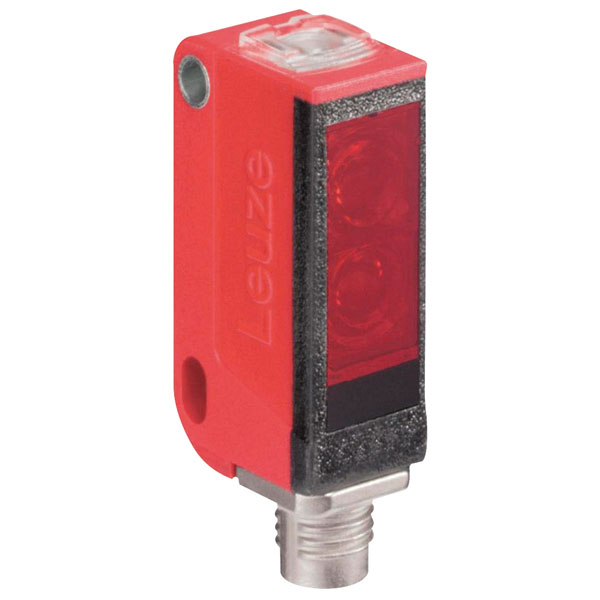

Leuze Electronic 50107247 HRTR 3B/66-XL-S8 Standard Light Sensor

This diffuse reflection light sensor has a wide, rectangular light spot that enables the reliable detection of objects that have grooves or holes, transparent foils and bottles, objects with grid structures, objects with variable position, etc. A visible red light LED is used as the light source, making set-up easy and performance is further enhanced with adjustable background suppression and A²LS Active Ambient Light Suppression. Scanning range is adjustable using an 8-turn potentiometer.

• 40 x 3mm Light spot
• High switching frequency for detection of fast events
• Small and compact construction
• Push-pull switching outputs
• LED Indication of status and performance
• Terminated by 2m cable
• IP67 Protection
