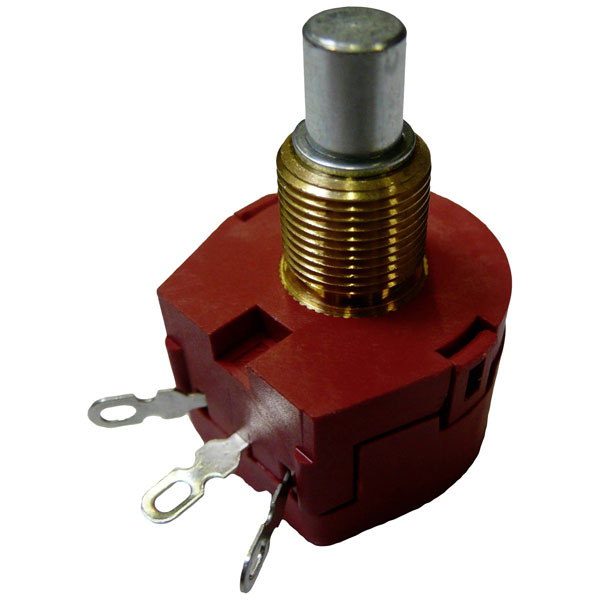

KYOCERA/AVX 3109608388 Wire-wound pot Mono 1W 22kΩ Rotary Potentiometer

KYOCERA/AVX 3109608388 is a wire-wound potentiometer that features a mono-channel design, providing a precise resistance value of 22 kO and supporting a power rating of 1 watt. This rotary potentiometer is known for its robustness due to its wire-wound construction, making it suitable for applications requiring high accuracy and reliability. Commonly employed in instrumentation, precision voltage adjustments, and audio equipment, this component ensures stable variable resistance control. Its form factor allows for efficient integration into a variety of circuit designs where linear motion is utilised. The KYOCERA/AVX 3109608388 is particularly beneficial in scenarios demanding consistent performance under variable environmental conditions.

Type	3109608388
Resistance	22kΩ
Power Rating	1W
Actuating Force	3Ncm
Axle Diameter	6mm
Axle length	27mm
Case Dimensions	23mm
Connection	Solder tag
Content	1
Cut-off Voltage	300V
Diameter	23mm
Dimensions	(Ø x L) 23 mm x 17.5 mm
Electrical Angle	265°
Impact Tolerance	100Ncm
Length	17.5mm
Maximum Temperature	+90°C
Mechanical Angle	285°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Thread Length	10mm
Thread Size	M10
Tolerance ±	0.1%
