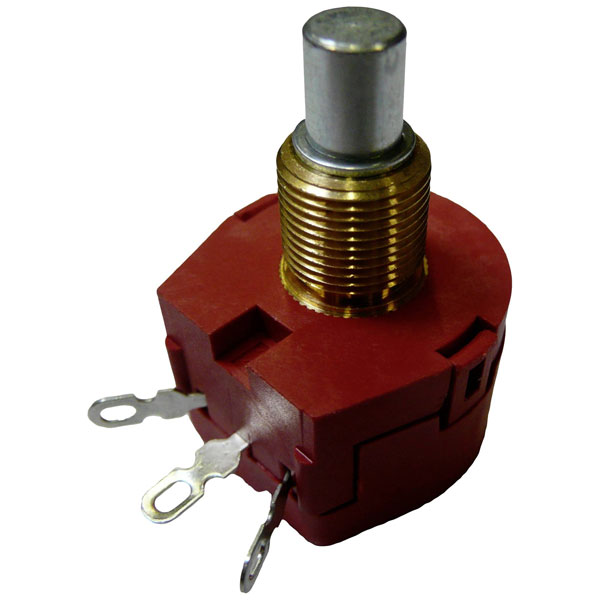

KYOCERA/AVX 3109605611 Rotary Potentiometer Wire-wound Mono 1W 500Ω

KYOCERA/AVX 3109605611 is a wire-wound rotary potentiometer designed for high precision and durability, featuring a resistance of 500 ohms and a power rating of 1 watt. This component is ideal for applications requiring a reliable method of adjusting resistance and controlling electrical signals, such as in precision instrumentation, audio equipment, and electronic circuitry where consistent performance is critical. The mono configuration ensures straightforward integration into design layouts, and the durable construction allows it to withstand regular operation in both commercial and industrial environments. The wire-wound technology employed in this potentiometer facilitates superior accuracy and minimal signal degradation over time, making it a preferred choice for engineers seeking dependable variable resistors.

Type	3109605611
Resistance	500Ω
Power Rating	1W
Actuating Force	3Ncm
Axle Diameter	6.3mm
Axle length	25.4mm
Case Dimensions	23mm
Connection	Solder tag
Content	1
Cut-off Voltage	300V
Diameter	23mm
Dimensions	(Ø x L) 23 mm x 17.5 mm
Electrical Angle	265°
Impact Tolerance	100Ncm
Length	17.5mm
Maximum Temperature	+90°C
Mechanical Angle	285°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Thread Length	10mm
Thread Size	3/8"
Tolerance ±	0.1%
