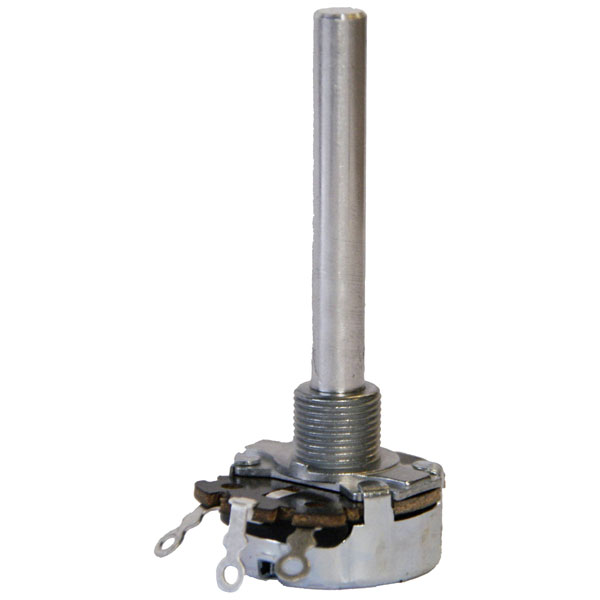

KYOCERA/AVX 3104601340 Wire-wound Mono 4 W 5 Ω Rotary Potentiometer

KYOCERA/AVX 3104601340 is a wire-wound mono rotary potentiometer characterised by a power rating of 4 watts and a resistance of 5 ohms. Designed for precision control in various electronic applications, this slide potentiometer utilises a wire-wound construction to ensure high durability and long-term stability. Its robust design makes it suitable for use in audio equipment, industrial control systems, and instrumentation where precise resistance adjustment is necessary. The 3104601340 model provides reliable performance under demanding conditions, showcasing KYOCERA/AVX's commitment to delivering high-quality components for specialised engineering needs.

Type	3104601340
Resistance	5Ω
Power Rating	4W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Axle length	50mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 12 mm
Electrical Angle	280°
Impact Tolerance	115Ncm
Length	12mm
Maximum Temperature	+90°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Temperature Coefficient	400ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.2%
