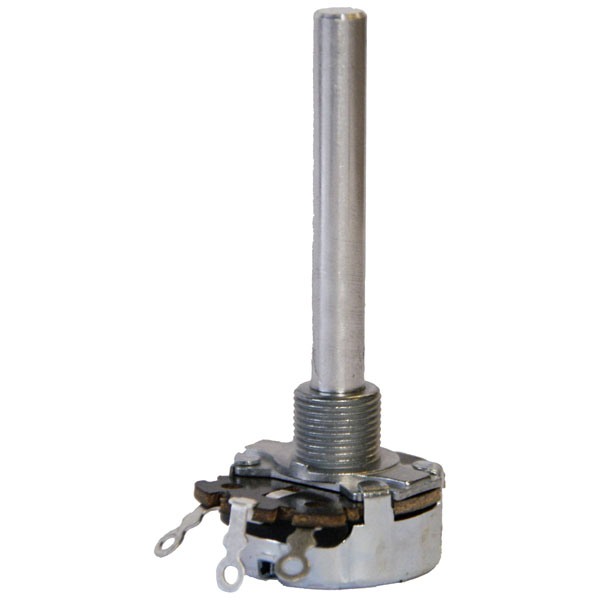

KYOCERA/AVX 3104600542 Wire-wound pot Mono 4W 2.5Ω 1pc Rotary Potentiometer

KYOCERA/AVX 3104600542 is a robust wire-wound mono slide potentiometer designed to deliver reliable performance in demanding applications. With a power rating of 4 watts and a resistance of 2.5 ohms, this rotary potentiometer is engineered to provide precise control over electrical parameters in circuits. It is a single-piece component known for its durability and accuracy, making it suitable for use in a variety of engineering applications such as audio equipment, industrial control systems, and instrumentation panels. The wire-wound construction ensures excellent performance in environments where stability and reliability are crucial. This component aligns with the high standards expected in professional electronic design and implementation.

Type	3104600542
Resistance	2.5Ω
Power Rating	4W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Axle length	50mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 12 mm
Electrical Angle	280°
Impact Tolerance	115Ncm
Length	12mm
Maximum Temperature	+90°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Temperature Coefficient	400ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.2%
