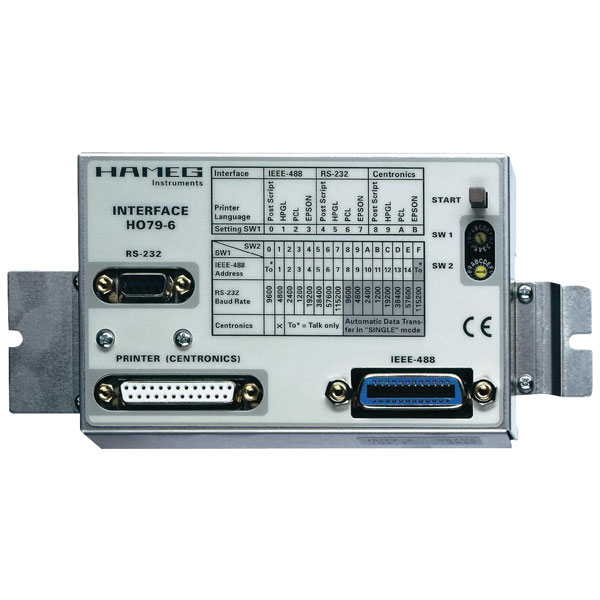

The HO79-6 interface enables the user to transfer data from the oscilloscope
to peripheral devices for documentation purposes. For programming ease SCPI
commands are used. Additionally the attached oscilloscope can be remotely
controlled via the HO79-6 in its digital as well as in its analog operating
mode.
The HO79-6 processes commands (according to the SCPI standard) that will be
received via the GPIB or the RS232C port. In its standalone mode the HO79-6 is
able to transmit data to an attached device after pressing the START button, for
example to print a graphic document.
The HO79-6 interface enables the user to transfer data from the oscilloscope
to peripheral devices for documentation purposes and to transmit reference
signals to the oscilloscope in its digital mode. Additionally the attached
oscilloscope can be remotely controlled via the HO79-6 in its digital as well as
in its analog operating mode.
- Bidirectional data transfer
- SCPI programming commands
- Direct printing of the signal (without PC)
- IEEE-488 Interface
- IEEE-488 (GPIB) compliant socket (24-pin)
- Talk-only mode
- Device mode (address selectable from 1 to F)
- RS-232 Interface full Duplex (V.24)
- 9-pin connection to D-Sub socket
- Automatic baud rate recognition
- Baud rate from 1,200 to 115,200 baud
- Parallel interface (Centronics) br >25-pin connection to D-Sub
socket
- PostScript, HPGL, PCL and EPSON
- For the oscilloscope HM507 (order code
85-4402)
