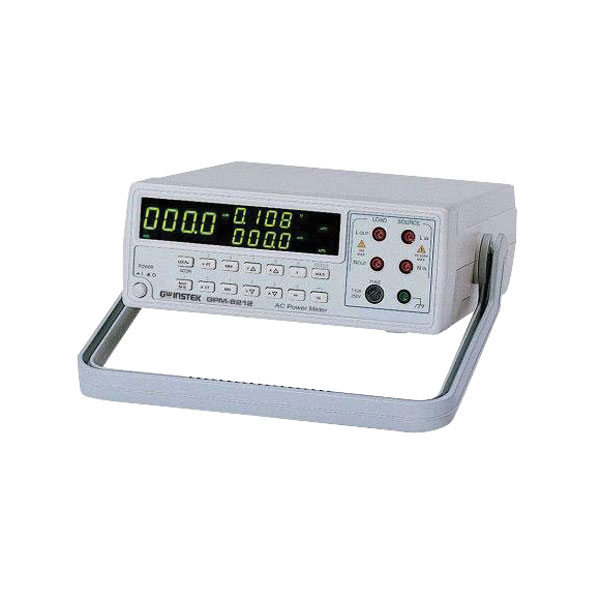

GPM-8212 AC Power Meter

The GW Instek GPM-8212 is a bench-top power meter suitable for middle to high end applications. The performance and functionality are maintained at the highest level as in maximum 9999 CT/PT ratio, high immunity to external noise, and true RMS voltage/current/power. Extra attention is paid to simplify setup and operation.

The large 0.56 inch display of the GW Instek GPM-8212 shows all three units, wattage/voltage/current, either in PF or Hz, simultaneously. The GW Instek GPM-8212 has a PC connection, either through RS-232C (order code 90-6243) or an RS-485 interface (order code 90-6244). This adds automatic calibration feature providing minimum error factor and data/control interface for automated test systems.

• Simultaneous display of W, A, V (PF or Hz)
• True RMS V, A, W
• Auto calibration via computer
• Max./min./hold function
• High immunity to external noise
• CT Ratio (1 to 9999)
• PT Ratio (1 to 9999)
• Manufacturers part no. GW Instek GPM-8212 (A.C. Power Meter)
