Garo SS 4125 IP65 4 Pole Rotary Isolator Switch 125A

Garo
Order Code:

65-4176

Brand: Garo MPN: SS 4125 IP65

Discontinued

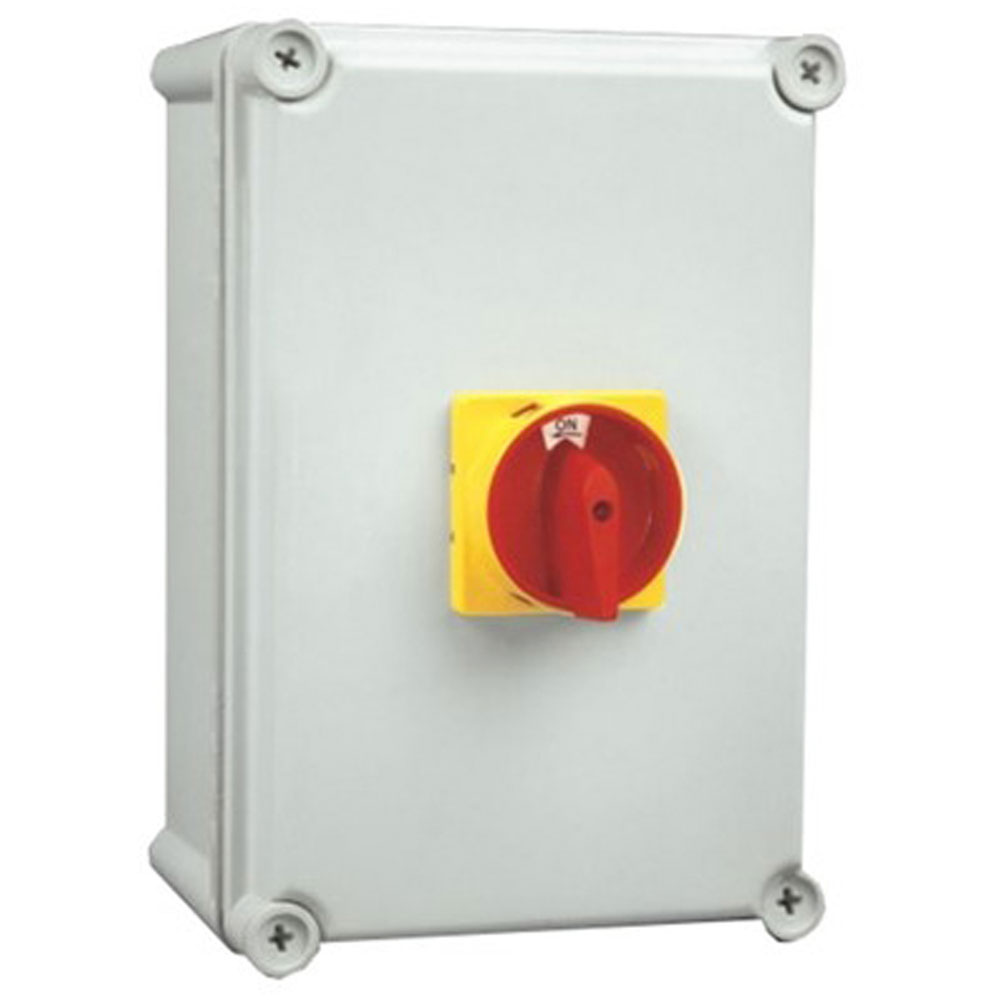

The Garo SS 4125 125A safety switch is an IP65 rated, 4 Pole Rotary Isolator Switch is in a grey enclosed polycarbonate body.

The switch features a red handle with yellow shroud, and is used to isolate power in EV installations for safety and maintenance purposes.


Product DescriptionGaro SS4125 4 Pole Safety Switch, 125A
Replenishh Order Code:65-4176
Supplier Code:SS 4125 IP65
Product Type:EV Safety Switch
Fuse Rating125A
Fuse TypeJ
Mounting Knockout SizeØ25mm
Max Terminal Entry6mm² ~ 70mm²
IEC/EN/VDE RatedYes
UL/CSA RatedYes
Enclosure ColourGrey
Handle ColourRed and Yellow
Dimensions (H x W x D)280 x 190 x 130mm
MaterialABS / Polycarbonate
IP RatingIP65

Features

Round padlocking device (Max 3 padlocks)
Number of Poles 4
Maximum Current 125A
IP Rating IP65
Accepts Padlock Yes
Handle Colour Red
Power Rating @ 220-240V 22kW
Terminal Type Screw
Tightening Torque 2.5Nm
