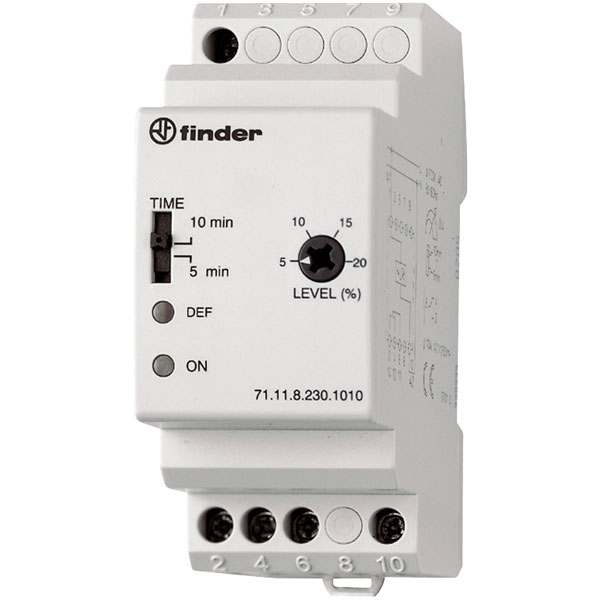

Finder 71.11.8.230.1010 10A Over Under Voltage Monitoring Relay SPDT-CO 250VAC

The Over Under Voltage Monitoring Relay (Finder 71.11.8.230.1010) is rated at 230V 10A. This single phase SPDT-CO relay is for mounting onto 35mm DIN rail. It detects and trips on out of limits L-N voltage, and protects against excessive 'starts/hour' through 'power-on' and 'lock-out' time delays.

Typical applications - protection of compressor motors and high pressure discharge lamp circuitry.

• Adjustable Over and Under voltage detection
• Symmetrical Over/Under voltage limits adjustable between ±5% to ±20% UN
• Switch selectable 5 or 10 minute lock-out delay
• 35mm rail (EN 60715) mounting
• LED indication
• Positive safety logic (healthy conditions - output relay energised)
• Contact type: SPDT-CO
• Dimensions: 85(H) x 35(W)mm
• Operating voltage: 230V/AC (50/60 Hz, P = 4VA)
• MinSwitching load (V/mA): 300/5/5mW
• Specification: 1-phase voltage monitoring
• Switching capacity: (AC1) Max 2500VA/(AC15, 230 V) 500VA/1-Phase motor load (AC3-operation, 230V) 0.5kW
• Switching current: 10A
• Switching voltage: 250V AC
• Manufacturer's part: Finder 71.11.8.230.1010
