Digilent 310-100 Analog Discovery 2x15 Ribbon Cable

Digilent
Order Code:

66-9977

Brand: Digilent MPN: 310-100

Discontinued


As part of the Analog Discovery range this cable is a handy and capable accessory to the Analog Discovery 2 USB oscilloscope (67-0168) and the Basys MX3: PIC32MX Trainer Board (67-0023).

The cable assembly allows you to extend all of the pins on the boards 30-pin male connector out to a 2 x 15 female connector. This means that you can connect the Analog Discovery 2 directly to the Basys MX3 for comprehensive signal investigation.
  • Extend the Analog Discovery signals to a female header

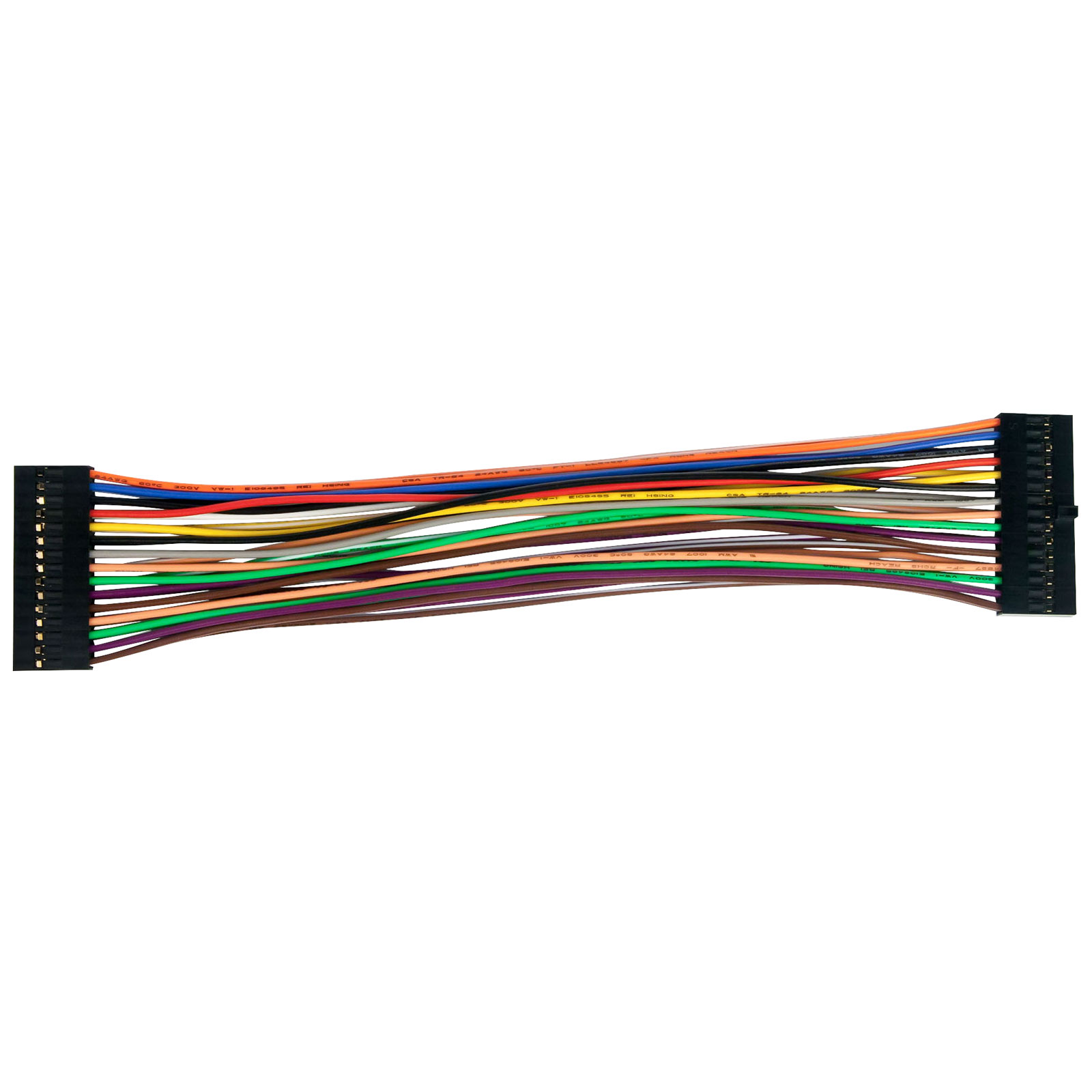

  • 2 x 15 Keyed female connectors at each end with 30 colour-coded signal wires
  • Cable length 196.8mm
Type 2 x 15 Female header ribbon cable
