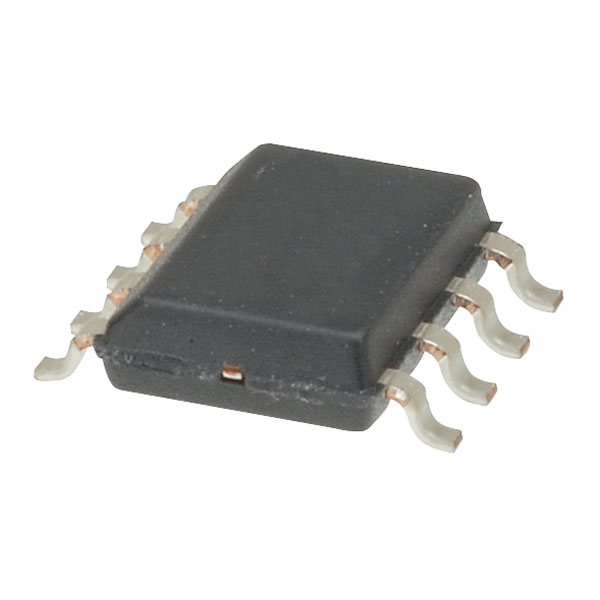

Analog Devices AD623ARZ Instrumentation Amp 800kHz IC SOIC8

The AD623ARZ is an integrated, single-supply instrumentation op amp that provides a rail-to-rail output swing on a 3 to 12V supply. Gain control, using an external resistor, delivers flexibility in circuit design - offering gain values from unity to 1000. Additional features such as low power consumption and wide supply voltage range makes this operational amplifier suitable for a range of uses such as battery-powered applications. With an output stage that maximises dynamic range the AD623 can replace discrete instrumentation amplifier designs, giving superior linearity, temperature stability and reliability in a minimum of space.

• Easy to use
• Higher performance than discrete design
• Single-supply and dual-supply operation
• Rail-to-rail output swing
• Input voltage range extends 150mV below ground (single supply)
• Low power, 550µA maximum supply current
• Gain set with one external resistor
• Gain range 1 (no resistor) to 1000
• High accuracy DC performance
• Noise: 35 nV/√Hz RTI noise @ 1 kHz (G = 1)
• Excellent AC specifications
