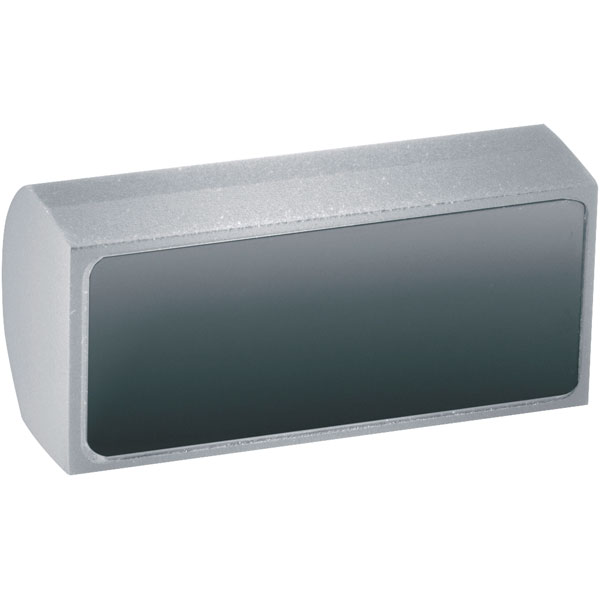

The ABUS TV6815 IR Illuminator MEGA LED S 13m 880nm offers more light and better images, ensuring your cameras records clear images even in the dark. With the semi-discreet IR illuminator MEGA LED S, you provide your camera with the necessary light even in total darkness. The 21 LEDs provide infrared light with a wave length of 880nm for night shots.
The IR illuminator is suitable for both black and white and day/night cameras, with a range that depends on the camera's light sensitivity. At 0.01 lux, the range is around 25m - at 0.1 lux, the range is 13m. The beam angle is 25° x 25° (horizontal/vertical).
The IR illuminator MEGA LED S is dust-proof and protected against jets of water (IP66). Outdoor use is no problem at a temperature range from -30°C to + 40°C. Its maximum power consumption is 4.2W. Using its integrated light sensor, the IR illuminator detects twilight or darkness and switches on.
If light intensity is sufficient, e.g. in daylight, it switches off. The MEGA LED S (TV6815) is a semi-discreet IR illuminator. The wavelength of this illuminator (approx. 880nm) is somewhat shorter than the wavelength of a discreet illuminator (940nm) of the same type (TV6816). The advantage of the semi-discreet illuminator is its increased range - only when close to the IR illuminator, the faint red glow of its LEDs can be spotted.
TV6815IR spotlight with 21 LEDsSemi-discrete for long rangesRange up to 25mIP66 for indoors and outdoors71 x 38 x 48mm (W x H x D)25/25° horizontal/vertical IR angle<2 arming21 LEDs1/4" tripod socketAluminium housing material4.2W power consumption40°C max. operating temperature-30°C min. operating temperature0.245kg net weight880nm optical wavelength25m range at 0.01 lux13m range at 0.1 luxIP66 protection class12V DC voltage supply350mA power consumptionSemi-discrete LED type
