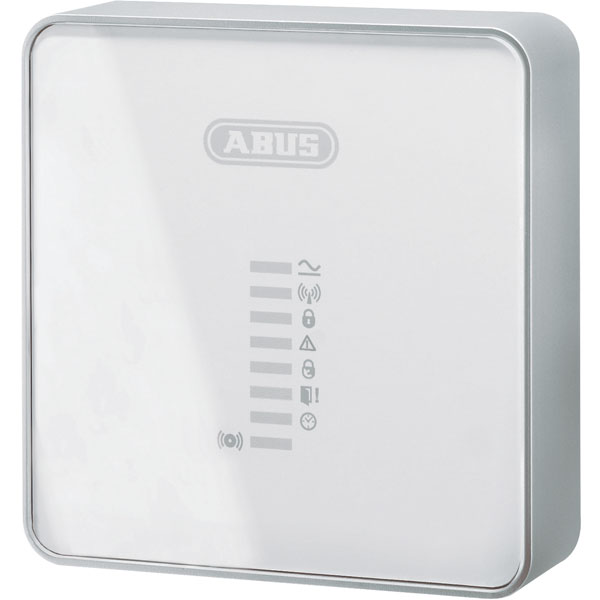

The ABUS FU8200 Secvest 2-Way Wireless Info Module is an optional accessory for the Secvest 2-Way via an LED display and various acoustic signals - it notifies the alarm system of all processes and statuses. You can read the following system statuses from the 8 LEDs of the info module:
Voltage display Reception of a valid signal Status of the sub-section to which the control unit is assigned (armed/disarmed) - information available after reset Status of the sub-section to which the control unit is assigned (internally armed/disarmed) Open zones available/the Secvest is in installer mode If the input or output delay time is running An alarm is triggered
You can learn the following statuses from the acoustic signals of the internal Piezo signal generator: Fault: The system cannot be armed During the output delay, a zone has been opened/closed Input delay is running Door chime Panel successfully armed Teach-in signal received Installer mode exited
In addition, the internal Piezo sounder provides an alarm with up to 110dB if triggered. The distance from the wireless info module to the alarm panel can be up to 100m.
Reliably reports the status of the Secvest8 LED indicatorsVarious signal and alarm tonesIntegrated piezo sounderSupplied externally with 12VFU8200124 x 124 x 40.7mm (W x H x D)12V connections8 LEDs of different colors868.6625 radio frequencyABS housing materialInternal piezo signaller 110dB(A) @ 1m0.477 power consumption+55°C max. operating temperature96% max. humidity100m max. receiving range (outdoors)30m Max. receiving range (building)-10°C min. operating temperatureFM FM/AMIndoor installation0.2kg net weight110dB sound pressureIP54 protection classLevel 2 security9-14V DC voltage supply53mA power consumptionClass II environmental
Information module · User manual.
