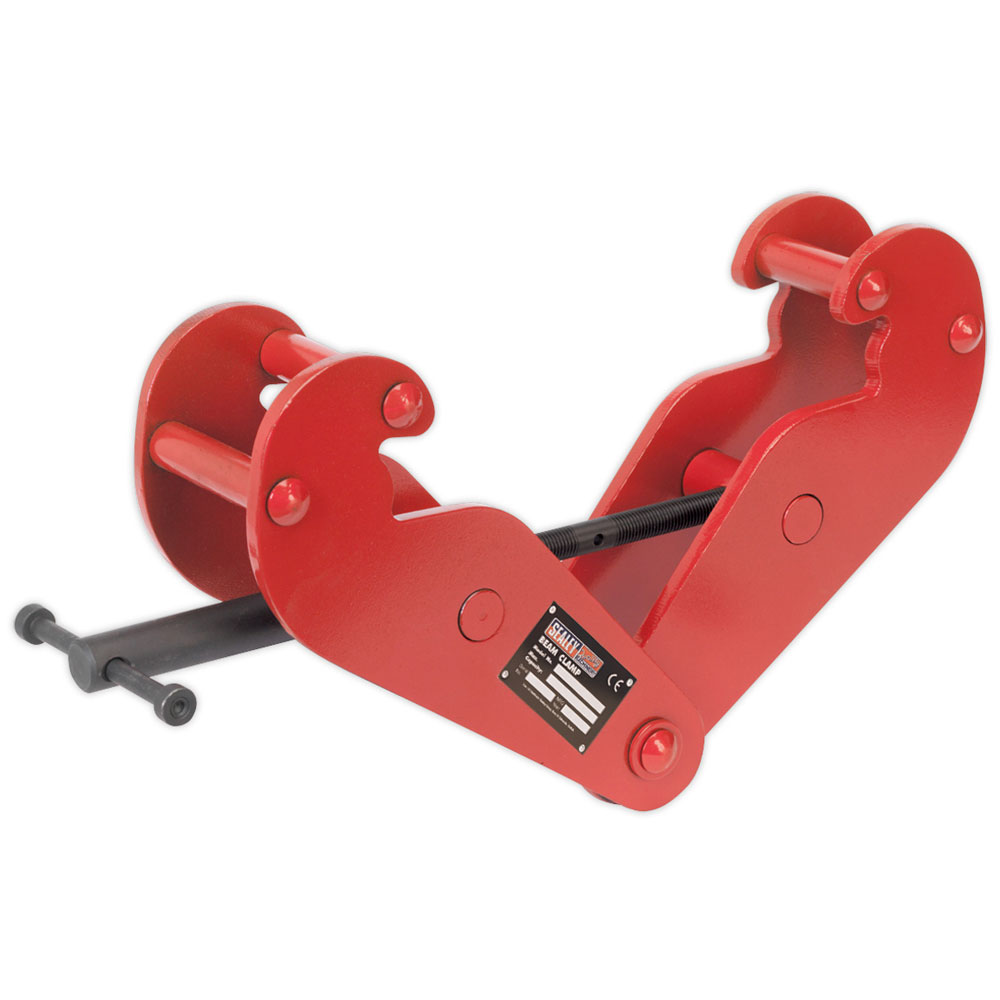

Sealey BC5000 Beam Clamp 5tonne

MPN: BC5000
Brand: Sealey
EAN-13: 5024209121422
Order Code: 89-1481
Country of Origin: China

RoHS Compliant

Discontinued

Product Details
Data Sheets

Suitable for semi-permanent attachment to steel beams and acts as a lifting point for chain blocks, hoists and lifting tackle. The clamp may also be used for lifting and transfer of steel beams and as a pulling clamp. Low profile afforded by integral pivot/lifting point.

Model No	BC5000
Adjustable Beam Width:	80-320mm
Capacity:	5000kg
Dimensions:	(A) - 354mm, (B) - 235-490mm, (C) - 110mm, (D) - 10mm, (E) - 260mm, (F) - 140mm, (G) - 45mm, (H) - Ø28mm
Nett Weight:	10.9kg
Note:	Refer to catalogue for diagram.
