Good Sky RE-2-08A 2PCO 5A Power Relay 240VAC

Good Sky RE-2-08A 2PCO 5A Power Relay 240VAC

Order Code:

60-1664

( Write a review )

Brand: Good Sky MPN: RE-2-08A

RoHS Compliant
Country of Origin: China

Report an error

Discontinued

Product Details
Data Sheets

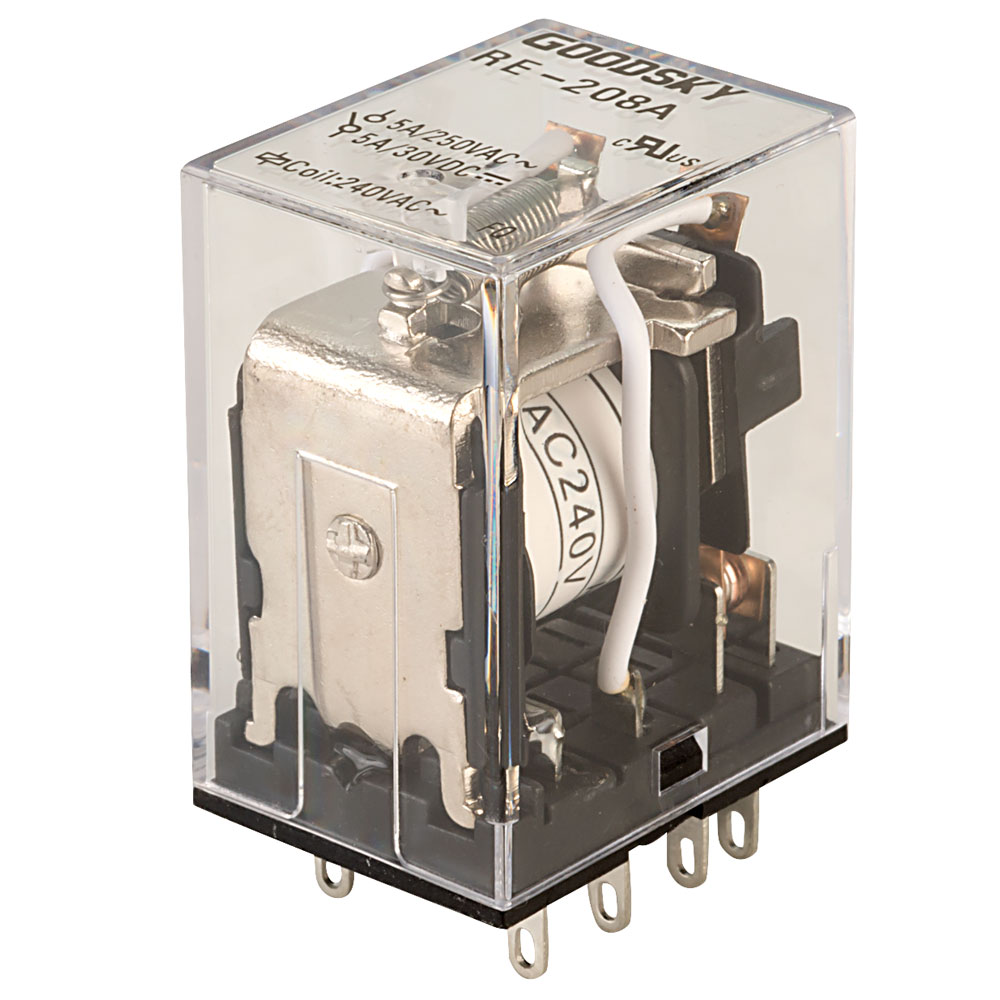

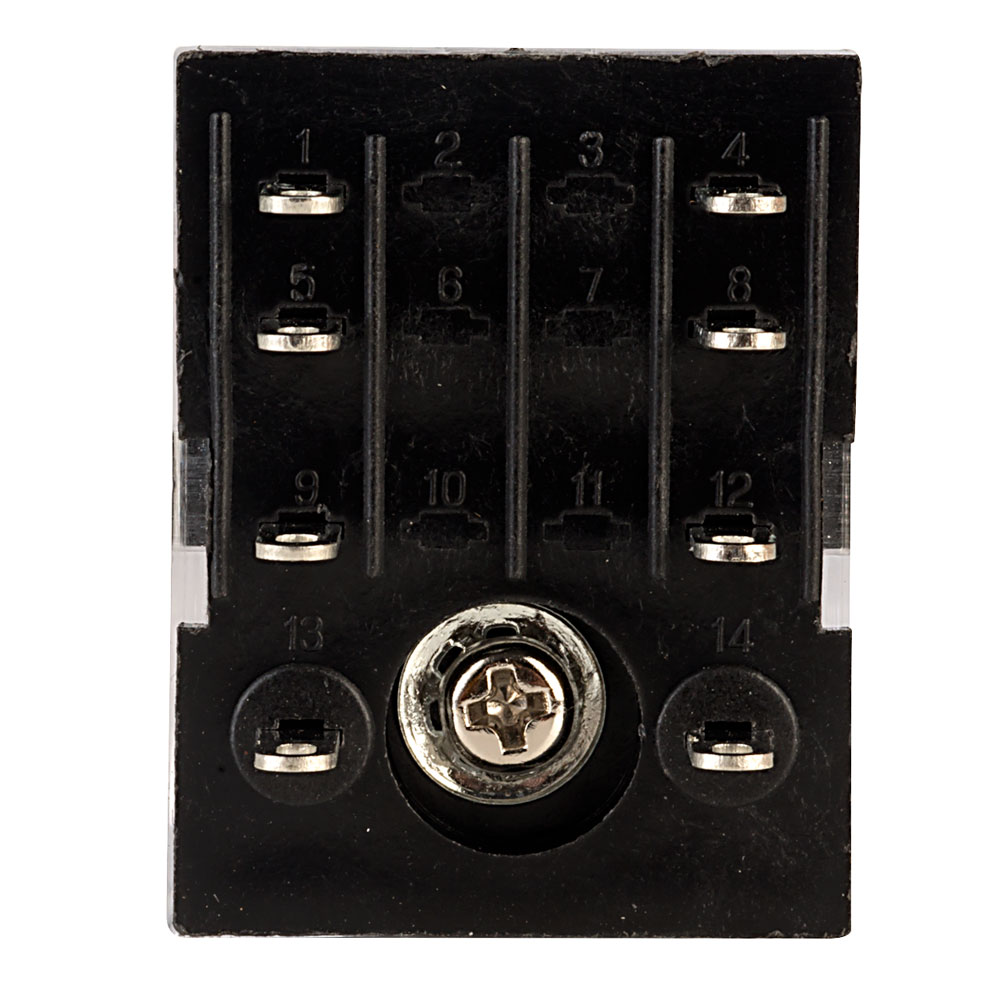

A 2 pole changeover power relay with solder lug terminals.

2 pole version
Switching current 5 Amps
Low coil power consumption
High response time
High reliability and long life
High level of vibration and shock resistance
Suitable for vending machines, cooking appliances and control equipment
UL Approved
GS type RE-2-08A

It can also be used with the PYF-14BE DIN rail relay socket, 60-1665, available separately.

Contact Configuration	2PDT-CO
Coil Voltage (AC)	240V
Coil Current	7.24mA
Coil Resistance	13600Ω
Rated Voltage (DC)	30V
Rated Voltage (AC)	250V
Rated Current	5A
Switching Power	600VA
Mounting Type	Rail
Operating Temperature	-25 to +55°C
Height	36mm
Length	27.6mm
Width	21.1mm

Technical Specification

Questions

*Question functionality currently disabled

22 August 2014 Question by: Rapid Customer | Product code: 60-1664

Q. Need to control a 1000W 230V water pump. Load would therefore be 4 Amp inductive. Is the 5A rating for the this relay contacts 5A inductove load? If not would wiring the two sets of contacts in paralel work? If not can you recomend a suitable 230V coil relay that woudl suit

A. Hi Phil. Thank you for your question. We would suggest you consider something like 60-1676 and base 60-1677.

02 January 2014 Question by: Rapid Customer | Product code: 60-1664

Q. Hi, does this relay have a coil voltage of 240v? Thanks in advance, Roy.

A. Hi Roy. Thank you for your question. The maximum allowable voltage is 250V AC on the coil for this relay.

04 August 2013 Question by: Rapid Customer | Product code: 60-1664

Q. I am looking for a relay to use when installing a ceiling mounted fan which requires a min 3mm gap between switch contacts. As the fan itself only draws approx 0.21a (46w at 240v) I cant see this as a problem but would appreciate any help you can suggest before purchase.

A. Hi Paul. Thank you for your question. According to the data sheet, the RE-2 type relay has an approximate contact gap of 4.1mm.
