R-TECH 780387 Latching DPST PCB Push Button Switch

Order Code:


Brand: R-TECH  MPN: 780387  EAN-13: 5053556003174
 Report an error
Qty Unit Price (Ex VAT)
5+ £3.02
50+ £2.52
100+ £2.16
500+ £1.95
1000+ £1.89

Get a quote for large quantities here

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 5
Additional quantity lead time unreliableContact us for expedited delivery
215 in Stock, despatched same dayAdditional 1,000 due on 09/04/2024

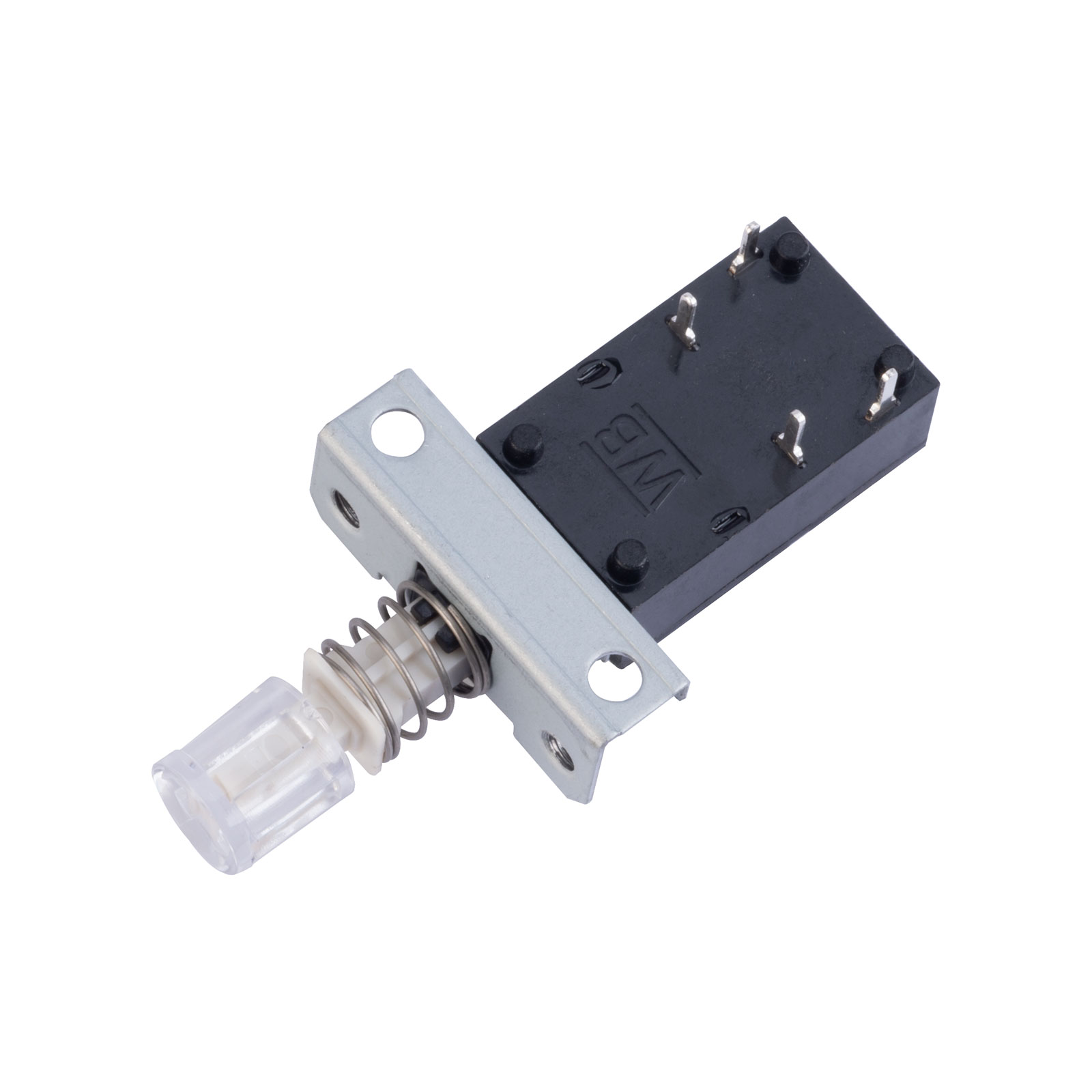

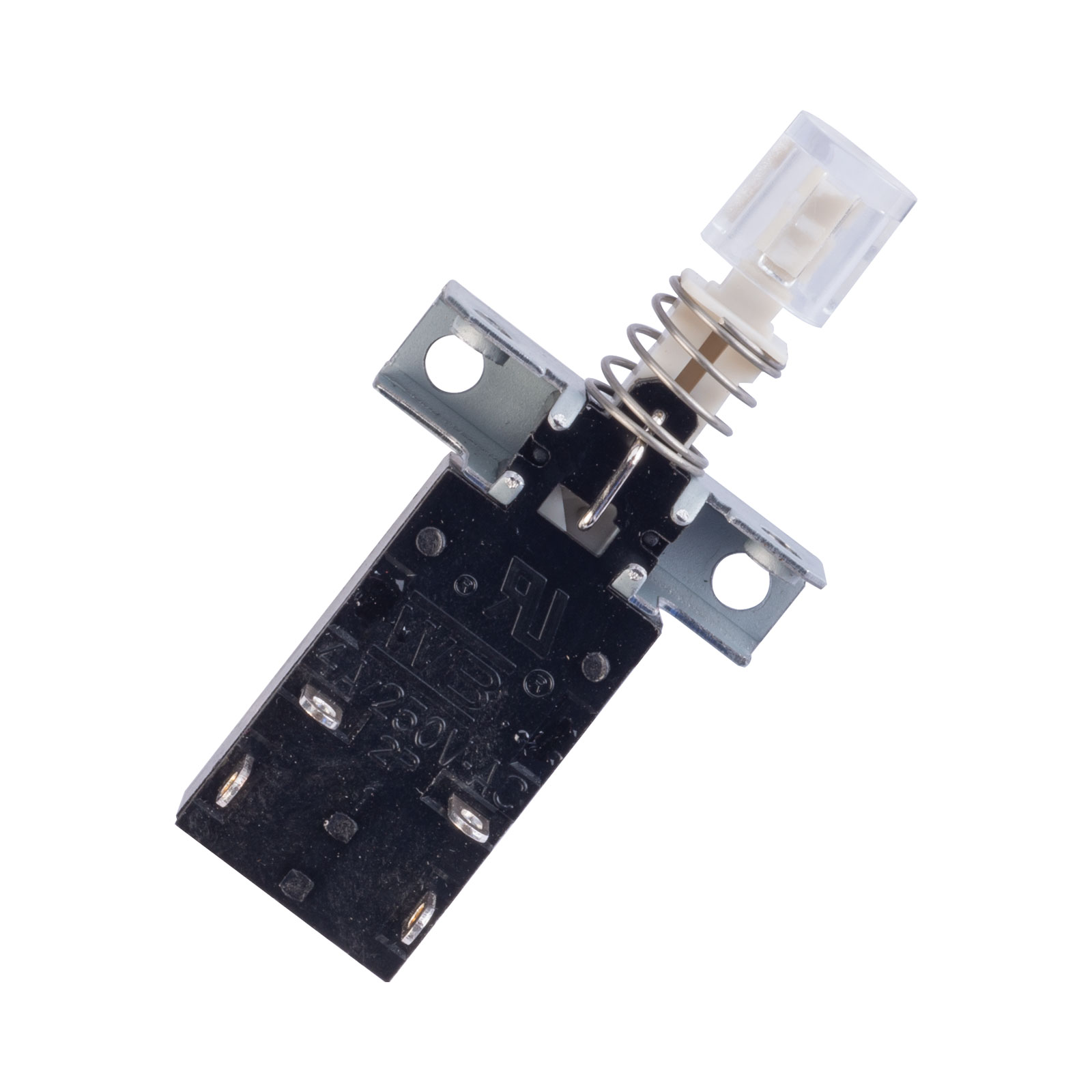

An R-TECH double pole, single throw (DPST) PCB mounting power switch with locking action.

Suitable for power switching in a wide variety of applications. Can be PCB mounted, but also chassis or panel mounted.

  • Type: Locking power PCB mounting switch
  • Switch action: Latching
  • Contact configuration: DPST
  • Maximum contact voltage: 250V AC
  • Maximum current: 4A
  • Contact resistance: 100 mΩ max
  • Terminal type: Solder tags and solder pins
  • Dimensions: 51.3 x 26 x 8.2 mm
Type PCB switch
Contact Configuration DPST
Max. Current 4A
Action Off/on
Illumination Type N/A
Illumination Colour(s) N/A
Shaft Dimensions 3.3 x 3.3mm
